Approx LBS/MFT80.00
AWG Size25
Cond. MaterialTinned Copper
Conductor Strandingsolid
Dielectric (in)0.074
Dielectric MaterialFoam Perfluoroalkoxy (FPFA)
Jacket MaterialPolyvinylchloride (PVC)
Max. Temp75C
CM, CMR, and CMP Rated
11 items
Approx LBS/MFT79
AWG Size25
Cond. MaterialTinned Copper
Conductor Strandingsolid
Dielectric (in)0.074
Dielectric MaterialFoam Perfluoroalkoxy (FPFA)
Jacket MaterialPolyvinylchloride (PVC)
Max. Temp60C
Approx LBS/MFT87
AWG Size25
Cond. MaterialTinned Copper
Conductor Strandingsolid
Dielectric (in)0.074
Dielectric MaterialFoam Perfluoroalkoxy (FPFA)
Jacket MaterialPolyvinylchloride (PVC)
Max. Temp60C

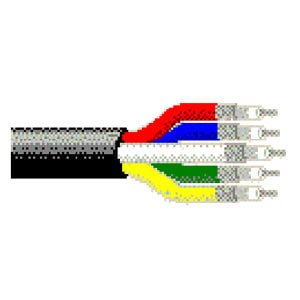

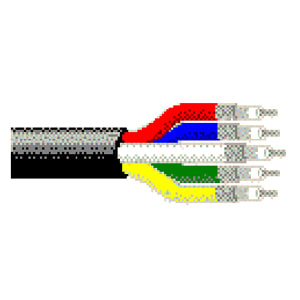

Belden CM, CMR, and CMP Rated RGB Cable Specifications
RGB Cable Construction:
- Type CM Cable:
- Conductor: 26 AWG Stranded Bare Copper
- Insulation: Foam High-Density Polyethylene (HDPE)
- Jacket: Inner PVC Jackets, Overall Black PVC Jacket
- Shielding: Duofoil (100% Coverage) and Tinned Copper Braid (93% Coverage), Overall Polyester Tape
- Type CMR Cable:
- Conductor: 25 AWG Solid Tinned Copper
- Insulation: Foam Perfluoroalkoxy (FPFA)
- Jacket: Inner PVC Jacket, Overall Black PVC Jacket
- Shielding: Duobond (100% Coverage) and Tinned Copper Interlocked Serve Shield (95% Coverage)
- Type CMP Cable:
- Conductor: 25 AWG Solid Tinned Copper
- Insulation: Foam Perfluoroalkoxy (FPFA)
- Jacket: Inner Fluorocopolymer Jacket, Overall Grey PVC Jacket
- Shielding: Duobond (100% Coverage) and Tinned Copper Interlocked Serve Shield (95% Coverage)
RGB Cable Ratings and Approvals:
- Type CM Cable (Non-Plenum Cable):
- NEC Type CM
- CEC Type CM
- UL AWM Style 1354 and 2668: 30V, 60°C
- Type CMR Cable (Riser-Rated):
- NEC Type CMR
- CEC Type CMG
- Voltage Rating: 300V RMS
- Maximum Temperature Rating: 60°C
- Type CMP Cable (Plenum-Rated):
- NEC Type CMP
- CEC Type CMP
- Voltage Rating: 300V RMS
- Temperature Rating: 60°C
