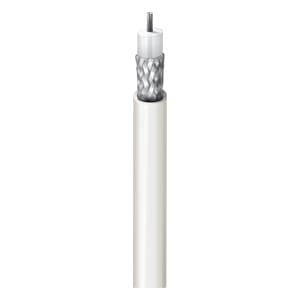

83284

83284
$0.00 / 100 FT
  • Approx LBS/MFT: 11
  • AWG Size: 26
  • Cond. Material: Silver-Plated Copper-Covered Steel
  • Conductor Stranding: 7/34
  • Dielectric (in): 0.058
  • Dielectric Material: TFE Teflon
  • Jacket Material: Fluorinated Ethylene Propylene (FEP)
  • Max. Temp: 200C
  • Min. Temp: -70C
  • No. of Strands: 7
  • Nom. Cap. (pF/ft): 29
  • Nom. DCR of Cond.: 84.1
  • Nom. DCR of Shld.: 6.5
  • Nom. Dia. of Cond.: 0.020
  • Nom. Imp.: 50
  • Nom. O.D. (in): 0.098
  • Shield: Overall Braid Shield
  • Shield Coverage: 95%
  • Shield Material: Silver-Plated Copper Braid
  • Strand Size: 34
  • Voltage: 900
