TCOM-240

The TCOM-240 Cable is a flexible, low-loss coaxial cable that features a solid bare copper inner conductor and an SPC strip braid outer conductor. This flexible outer conductor enables the tightest bend radius of any cable of similar size and performance. This cable also has a foam PE dielectric and tinned copper braid over an aluminum tape. This cable is a low-smoke zero-halogen cable. It is also flame retardant, UV resistant, and has a maximum temperature of 85°C.

20 items

Grid List Table
  • TC-240-FM-X
    TC-240-FM-X
    TC-240-FM-X
    $0.00 /
    • Approx LBS/MFT: 14.00
    • Connector Type: Straight Plug
    • Contact Attach (Inner): Solder
    Order
    Add to List
  • TC-240-MUHF
    TC-240-MUHF
    TC-240-MUHF
    $0.00 /
    • Approx LBS/MFT: 14.00
    • Connector Type: Straight Plug
    • Contact Attach (Inner): Solder
    Order
    Add to List
  • TC-240-NF-BH-X
    TC-240-NF-BH-X
    TC-240-NF-BH-X
    $0.00 /
    • Approx LBS/MFT: 115.00
    • Connector Type: Bulkhead Jack
    • Contact Attach (Inner): Solder
    Order
    Add to List
  • TC-240-NF-BHF(A)
    TC-240-NF-BHF(A)
    TC-240-NF-BHF(A)
    $0.00 /
    • Approx LBS/MFT: 115
    • Connector Type: Panel Jack
    • Contact Attach (Inner): Solder
    Order
    Add to List
  • TC-240-NMC
    TC-240-NMC
    TC-240-NMC
    $0.00 /
    • Approx LBS/MFT: 82.00
    • Connector Type: Straight Plug
    • Contact Attach (Inner): Solder
    Order
    Add to List

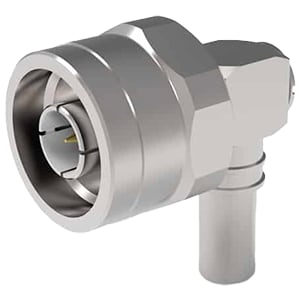

  • TC-240-NMH-RA-D
    TC-240-NMH-RA-D
    TC-240-NMH-RA-D
    $0.00 /
    • Approx LBS/MFT: 91.00
    • Connector Type: Right Angle
    • Contact Attach (Inner): Solder
    Order
    Add to List
  • TC-240-NMH-X
    TC-240-NMH-X
    TC-240-NMH-X
    $0.00 /
    • Approx LBS/MFT: 86.00
    • Connector Type: Straight Plug
    • Contact Attach (Inner): Solder
    Order
    Add to List
  • TC-240-SFSS-BH-X
    TC-240-SFSS-BH-X
    TC-240-SFSS-BH-X
    $0.00 /
    • Approx LBS/MFT: 19.00
    • Connector Type: Bulkhead Jack
    • Contact Attach (Inner): Solder
    Order
    Add to List

The TCOM-240 mainly uses standard LMR 240 connectors. TCOM-240 connectors are manufactured by Times Microwave for TCOM-240 low loss passive intermod coax, and are offered in a variety of interface types including N Male, TNC Male, QMA Male. Most LMR connectors come with a crimp outer attachment using standard hex crimp sizes.

TCOM-240 Coax Cable Specifications

TCOM-240 Construction:

  • Inner Conductor: Solid Bare Copper
  • Dielectric: Foam Polyethylene (FPE)
  • Outer Conductor: SPC Strip Braid
  • Outer Braid: Tinned Copper Braid over Aluminum Tape

TCOM-240 Ratings and Approvals:

  • Temperature:
    • Installation: -40°C to 85°C
    • Storage: -70°C to 85°C
    • Operating: -40°C to 85°C
  • UL/NEC and CSA rating: CMR and FT4
  • Passive Intermod: Lower than -155 dBc- Exceeds performance levels for most wireless applications
  • RF Shielding: 60 dB greater than typical single shielded coax (40 dB) - multi-ply bonded foil outer conductor rated conservatively at 100 dB

TCOM-240 Applications:

  • -155 dBc Intermodulation Distortion
  • Low Loss UHF/Microwave Interconnect
  • Wireless Base Station Interconnect
  • Flexible for Easy Routing

Construction of TCOM-240 Coax Connectors:

  • Description: Straight plug, Right angle, Panel jack, Bulkhead jack, Reverse polarity (see part specs for full details)
  • Inner Contact Attach: Solder, spring finger (see part specs for full details)
  • Outer Contact Attach: Crimp, Clamp
  • Coupling Nut: Knurl or Hex
  • Finish Body/Pin: Silver/Gold, Stainless Steel/Gold, Alballoy/Gold, Nickel/Gold, Nickel/Silver
