THHN - RoHS Compliant

RoHS Compliant THHN Cable

THHN Wire RoHS is a general-purpose wire manufactured in accordance with the NEC. The wire is rated at 600V and has a maximum temperature of 90 C in dry locations and 75 C in damp locations. It is suitable for installation in conduit or other recognized raceway. RoHS compliant THHN Wire may also be used for wiring of machine tools, appliances, and control circuits.

18 items

thhn 3 19 rohs
THHN 3 19 RoHS
Ampacity (90C)110
Approx LBS/MFT0.00
AWG Size3
Cond. MaterialBare Copper
Conductor Stranding19/.0526
Insul. MaterialPolyvinylchloride (PVC)
Jacket MaterialNylon
Jacket Thickness0.006
Requires Quote per FT
thhn 2 19 rohs
THHN 2 19 RoHS
Ampacity (90C)130
Approx LBS/MFT0.00
AWG Size2
Cond. MaterialBare Copper
Conductor Stranding19/.0591
Insul. MaterialPolyvinylchloride (PVC)
Jacket MaterialNylon
Jacket Thickness0.006
Requires Quote per FT
thhn 1 19 rohs
THHN 1 19 RoHS
Ampacity (90C)150
Approx LBS/MFT0.00
AWG Size1
Cond. MaterialBare Copper
Conductor Stranding19/.0664
Insul. MaterialPolyvinylchloride (PVC)
Jacket MaterialNylon
Jacket Thickness0.007
Requires Quote per FT
thhn 1/0 19 rohs

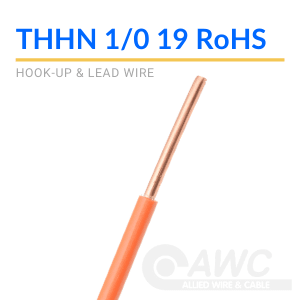

THHN 1/0 19 RoHS
Ampacity (90C)170
Approx LBS/MFT0.00
AWG Size1/0
Cond. MaterialBare Copper
Conductor Stranding19/.0745
Insul. MaterialPolyvinylchloride (PVC)
Jacket MaterialNylon
Jacket Thickness0.007
Requires Quote per FT
thhn 2/0 19 rohs
THHN 2/0 19 RoHS
Ampacity (90C)195
Approx LBS/MFT0.00
AWG Size2/0
Cond. MaterialBare Copper
Conductor Stranding19/.0837
Insul. MaterialPolyvinylchloride (PVC)
Jacket MaterialNylon
Jacket Thickness0.007
Requires Quote per FT
thhn 3/0 19 rohs
THHN 3/0 19 RoHS
Ampacity (90C)225
Approx LBS/MFT0.00
AWG Size3/0
Cond. MaterialBare Copper
Conductor Stranding19/.0940
Insul. MaterialPolyvinylchloride (PVC)
Jacket MaterialNylon
Jacket Thickness0.007
Requires Quote per FT
thhn 4/0 19 rohs
THHN 4/0 19 RoHS
Ampacity (90C)260
Approx LBS/MFT0.00
AWG Size4/0
Cond. MaterialBare Copper
Conductor Stranding19/.1055
Insul. MaterialPolyvinylchloride (PVC)
Jacket MaterialNylon
Jacket Thickness0.007
Requires Quote per FT
thhn 250 37 rohs
THHN 250 37 RoHS
Ampacity (90C)290
Approx LBS/MFT0.00
AWG Size250
Cond. MaterialBare Copper
Conductor Stranding37/.0822
Insul. MaterialPolyvinylchloride (PVC)
Jacket MaterialNylon
Jacket Thickness0.008
Requires Quote per FT

RoHS Compliant THHN Building Wire Specifications

RoHS THHN Construction:

  • Conductor: soft drawn, bare copper
  • Insulation: PVC
  • Jacket: Nylon
  • Colors: Black or white

RoHS THHN Ratings:

  • UL listed Stds. 83 and 1063 as Type THHN Wire 90°C in dry locations, Type THWN Wire 75°C in wet locations
  • Gasoline and oil resistant II. Type MTW 90°C Machine Tool Wire (stranded only) 105°C AWM, 80°C when exposed to oil
  • CSA approval available upon request
  • RoHS Compliant
