DN10-37

DN10-37
0.00 / 1000 FT
DN10-37
  • Approx LBS/MFT: 41, 41.00
  • AWG Size: 10
  • Cond. Material: Tinned Copper
  • Conductor Stranding: 37/26
  • Insul. Material: Polyvinylchloride (PVC)
  • Max O.D. (in): 0.115
  • Max. Temp: 105C
  • Mil-Spec: M16878/19
  • Min O.D. (in): 0.106
  • Min. Temp: -65C
  • No. of Strands: 37
  • Nom. Dia. of Cond.: 0.115
  • Nom. Insul. Thick. (in): 0.035
  • Nom. O.D. (in): 0.192, 0.1920
  • Strand Size: 26
  • Voltage: 3000

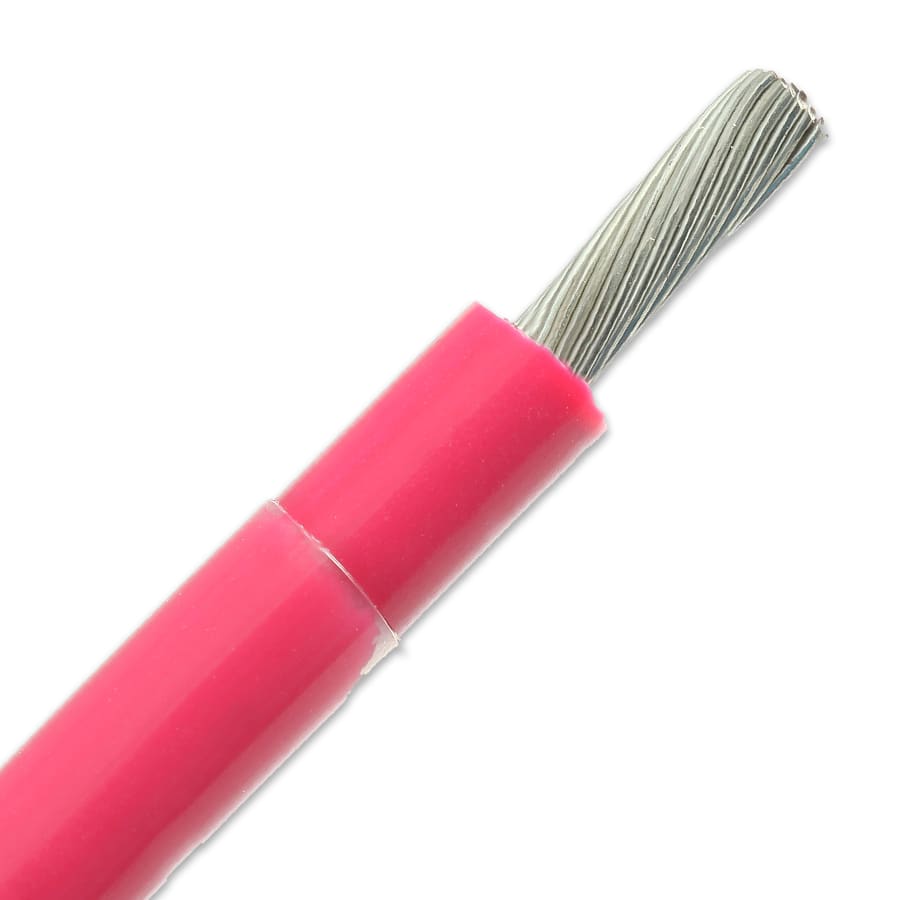

DN10-37 M16878 Mil-Spec Hook-Up Wire

With an Approx LBS/MFT of 41.00, this cable stands out with an AWG Size of 10 and is constructed with Tinned Copper as the conductor material, featuring a conductor stranding configuration of 37/26. The cable is insulated with Polyvinylchloride (PVC) and adheres to Mil-Spec M16878/19 standards. Boasting 37 strands, each with a strand size of 26, the cable has a nominal insulation thickness of 0.035 inches and an overall diameter (Nom. O.D.) of 0.1920 inches. Engineered for robust performance, it operates effectively within a temperature range of up to 105°C and has an impressive voltage rating of 3000, making it suitable for applications where high voltage capabilities, durability, and reliable electrical performance are crucial. The provided attributes table offers comprehensive details, ensuring that the cable aligns with specific requirements for a variety of electrical and electronic applications.

Color
