M22759/11-22

M22759/11-22
$0.00 / 50 FT
  • Approx LBS/MFT: 4.00
  • AWG Size: 22
  • Cond. Material: Silver-Coated Copper
  • Conductor Stranding: 19/34
  • Insul. Material: Polytetrafluoroethylene (PTFE)
  • M27500 Component: RC
  • Max O.D. (in): 0.051
  • Max. Temp: 200C
  • Mil-Spec: M22759/11
  • Min O.D. (in): 0.047
  • No. of Cond.: 1
  • No. of Strands: 19
  • SAE Spec: AS22759/11
  • Strand Size: 34

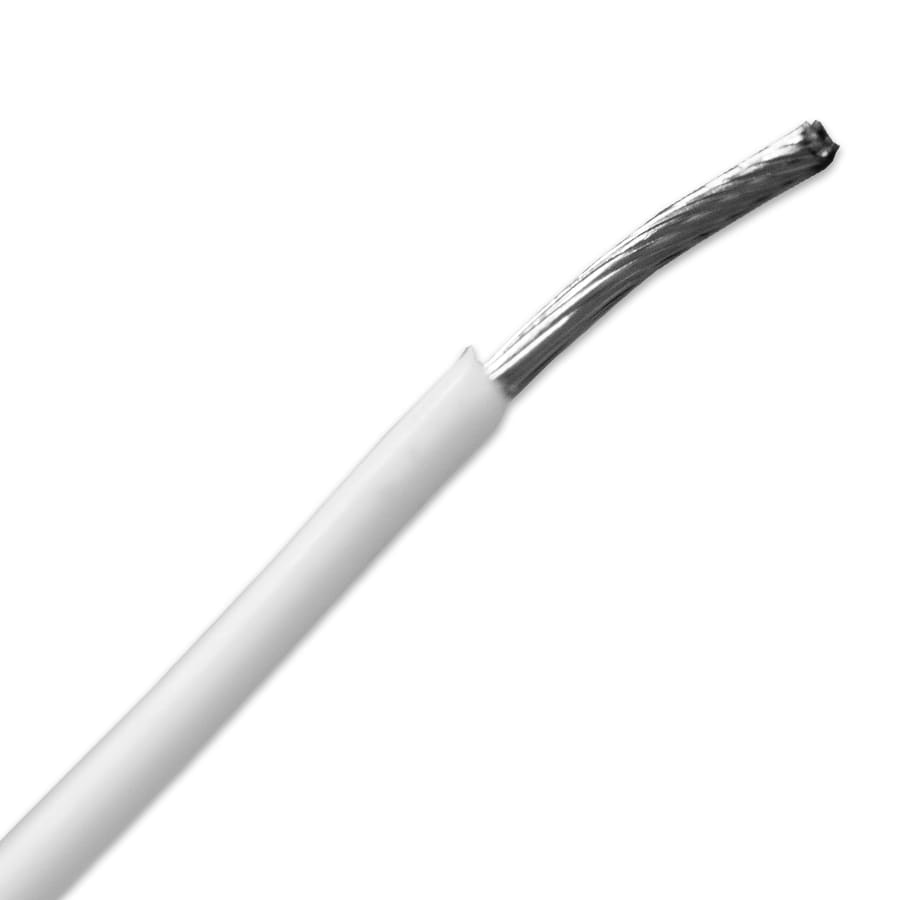

M22759/11-22 22 Gauge MIL-W-22759/11 | SAE AS22759/11 Cable

Allied Wire and Cable's M22759/11-22 22 gauge cable is part of our Mil-Spec Wire and Cable line of Wire and Cable. M22759/11-22 is composed of a 19/34 stranded silver-coated copper conductor with polytetrafluoroethylene (PTFE) insulation. These cables are rated for a voltage of 600 volts, have a maximum temperature of 200°C, and weigh approximately 4 lbs/MFT. M22759/11-22 cable is implemented for use in the internal wiring of electronic equipment and appliances. PTFE insulation resists hot soldering irons and is self-extinguishing, non-flammable, it has excellent chemical resistance and is suitable for immersion in gasoline, gasoline vapor and at 80°C maximum in oil. Per the specification, this product will have splices. 100 feet is the shortest length available for purchase. This is due to limited stock and high demand for PTFE cable products. If continuous lengths are needed, please ask.
