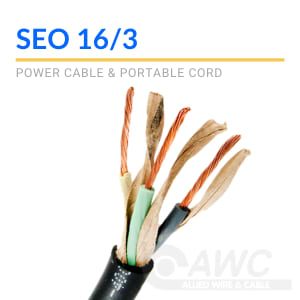

SEO 16/3 — Power Cable & Portable Cord
Our SEO 16/3 wire is part of our line of power cable and portable service cords. This 16 AWG, 13 AMPS, multi-conductor cable features 26 strands, thermoplastic elastomer insulation, a TPE jacket, and an overall bare copper conductor material. It also has a temperature range of -50°C to 105°C, a voltage rating of 600V, 0.030 nominal insulation thickness, an outer diameter of 0.390 inches and weighs approximately 81 lbs. This cable meets UL style SEOW and CSA type STOOW standards. View full product specifications and approvals in the table to the right.
SEO 16/3
Part Number
SEO 16/3
Attributes
No. of Cond.
3
Amps
13
Approx LBS/MFT
81.00
AWG Size
15, 16
Color Code Chart
12
Cond. Material
Bare Copper
Conductor Stranding
26/30
CSA Type
STOOW
Insul. Material
Thermoplastic Elastomer (TPE)
Jacket Material
Thermoplastic Elastomer (TPE)
Max. Temp
105C
Min. Temp
-50C
No. of Strands
26
Nom. Insul. Thick. (in)
0.030
Nom. O.D. of Cable (in)
0.390
Strand Size
30
UL Style
SEOW
Voltage
600
