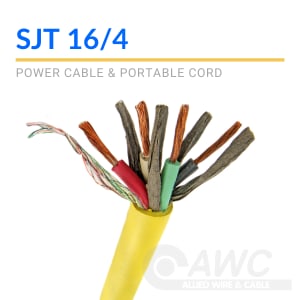

SJT 16/4

SJT 16/4
$0.00 / 1000 FT
  • Amps: 10
  • Approx LBS/MFT: 85.00
  • AWG Size: 16
  • Color Code Chart: 12
  • Cond. Material: Bare Copper
  • Conductor Stranding: 26/30
  • CSA Type: Approved
  • Insul. Material: Polyvinylchloride (PVC)
  • Jacket Material: Polyvinylchloride (PVC)
  • Max. Temp: 105C
  • Min. Temp: -34C
  • No. of Cond.: 4
  • No. of Strands: 26
  • Nom. Insul. Thick. (in): 0.030
  • Nom. O.D. of Cable (in): 0.365
  • Strand Size: 30
  • UL Style: SJTOOW

Our SJT 16/4 wire is part of our line of power cable and portable service cords. This 16 AWG, 10 AMPS, multi-conductor cable features 26/30 strands, polyvinyl chloride insulation, a PVC jacket, and an overall bare copper conductor material. It also has a temperature range of -34°C to 105°C, a voltage rating of 300V, 0.030 nominal insulation thickness, nominal outer diameter of 0.365 inches and weighs approximately 85 lbs. This cable meets UL-style SJTOOW standards. View full product specifications and approvals in the table to the right.

An experienced AWC sales rep will contact you within 24 hours during the business week to help meet your purchasing needs.
