07-16-26T
07-16-26T
$109.99
/ 1000 FT
- Approx LBS/MFT: 10.50
- AWG Size: 16
- Cond. Material: Tinned Copper
- Conductor Stranding: 26/30
- Copper LBS/MFT: 8
- CSA Type: TR-64
- Insul. Material: Polyvinylchloride (PVC)
- Max. Temp: 105C
- Min. Temp: -40C
- No. of Cond.: 1
- No. of Strands: 26
- Nom. Insul. Thick. (in): 0.016
- Nom. O.D. (in): 0.0940
- Strand Size: 30
- UL Style: 1007/1569

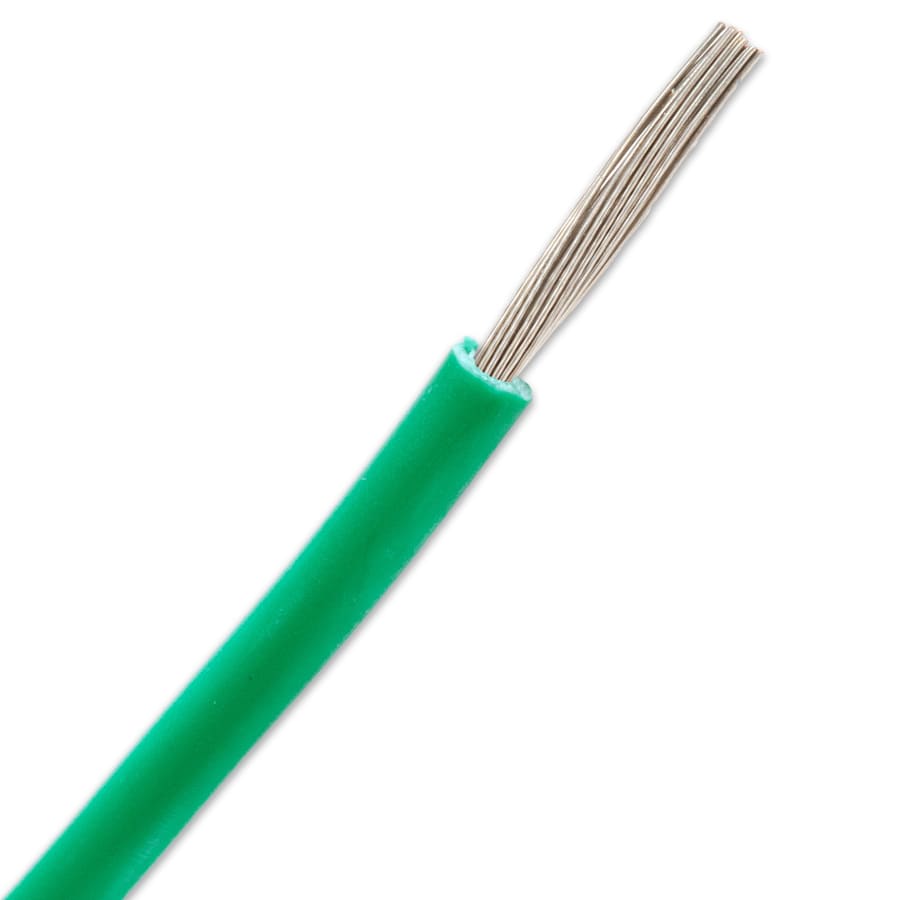

07-16-26T 16 Gauge Hook Up Wire
Our 07-16-26T 16 gauge PVC hook up wires are part of our UL 1007 and UL 1569 Hook-Up Wire / Lead Wire line. 07-16-26T is a 16 awg wire that features 26/30 conductor stranding with an outside diameter of 0.094 keeping this wire thin and lightweight to be used for the internal wiring of appliances and electronics. Weighing approximately 10.5 lbs/MFT, they are made of a stranded tinned copper conductor with a PVC insulation that comes in a variety of colors for easy identification. These wires are rated for up to 300 volts and a temperature range of -40°C to +105°C, making these wires ideal for their intended purposes.
