07-24-7T

07-24-7T
$0.00 / 100 FT
  • Approx LBS/MFT: 3.15
  • AWG Size: 24
  • Cond. Material: Tinned Copper
  • Conductor Stranding: 7/32
  • Copper LBS/MFT: 1.35
  • CSA Type: TR-64
  • Insul. Material: Polyvinylchloride (PVC)
  • Max. Temp: 105C
  • Min. Temp: -40C
  • No. of Cond.: 1
  • No. of Strands: 7
  • Nom. Insul. Thick. (in): 0.016
  • Nom. O.D. (in): 0.0560
  • Strand Size: 32
  • UL Style: 1007/1569

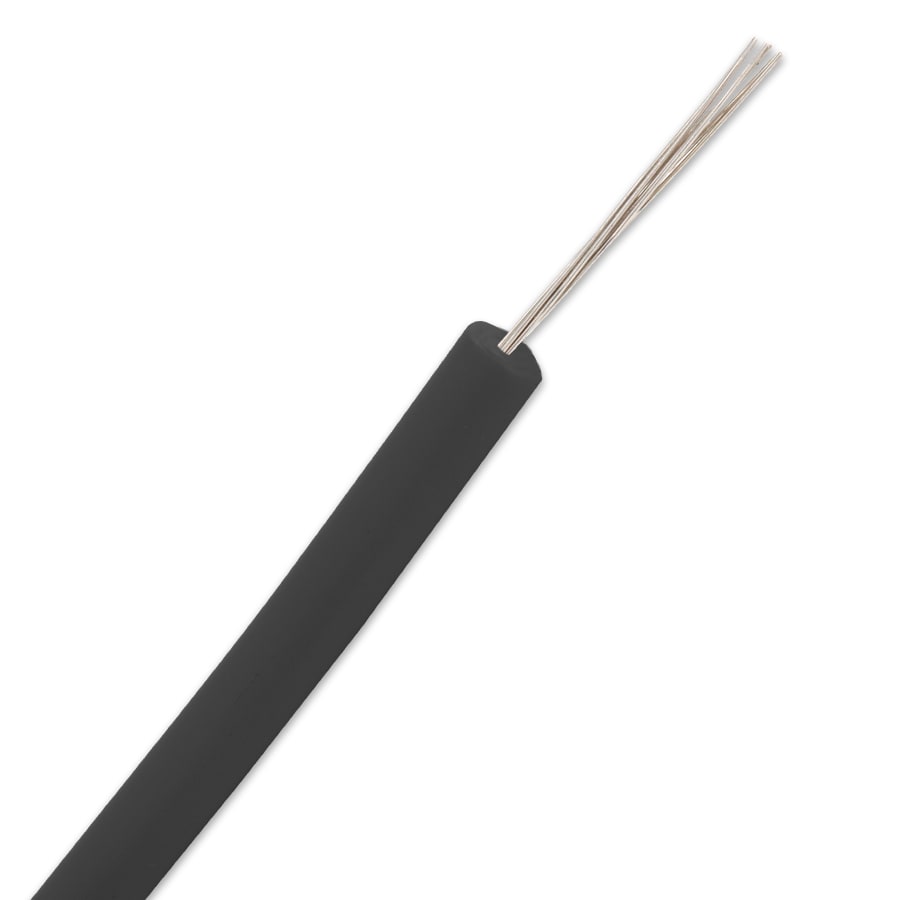

07-24-7T 24 Gauge Hook Up Wire

Our 07-24-7T 24 gauge PVC hook up wires are part of our UL 1007 and UL 1569 Hook-Up Wire / Lead Wire line. 07-24-7T is a 24 awg wire that features 7/32 conductor stranding with an outside diameter of 0.056 keeping this wire thin and lightweight to be used for the internal wiring of appliances and electronics. Weighing approximately 3.15 lbs/MFT, they are made of a stranded tinned copper conductor with a PVC insulation that comes in a variety of colors for easy identification. These wires are rated for up to 300 volts and a temperature range of -40°C to +105°C, making these wires ideal for their intended purposes.

Color
