07-30-7T

07-30-7T
$0.00 / 1000 FT
  • Approx LBS/MFT: 1.41
  • AWG Size: 30
  • Cond. Material: Tinned Copper
  • Conductor Stranding: 7/38
  • CSA Type: TR-64
  • Insul. Material: Polyvinylchloride (PVC)
  • Max. Temp: 105C
  • Min. Temp: -40C
  • No. of Cond.: 1
  • No. of Strands: 7
  • Nom. Insul. Thick. (in): 0.016
  • Nom. O.D. (in): 0.0440
  • Strand Size: 38
  • UL Style: 1007

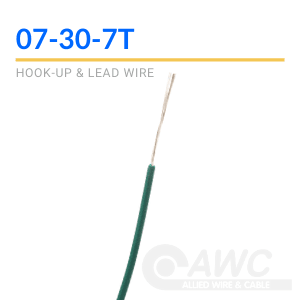

07-30-7T 30 Gauge Hook Up Wire

Our 07-30-7T 30 gauge PVC hook up wires are part of our UL 1007 and UL 1569 Hook-Up Wire / Lead Wire line. 07-30-7T is a 30 awg wire that features 7/38 conductor stranding with an outside diameter of 0.044 keeping this wire thin and lightweight to be used for the internal wiring of appliances and electronics. Weighing approximately 1.41 lbs/MFT, they are made of a stranded tinned copper conductor with a PVC insulation that comes in a variety of colors for easy identification. These wires are rated for up to 300 volts and a temperature range of -40°C to +105°C, making these wires ideal for their intended purposes.

Color
