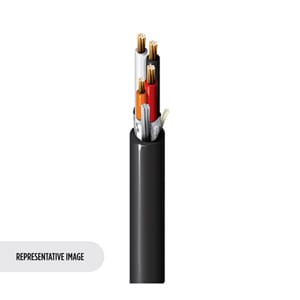

1031A - Power Limited Tray Cable (16 AWG, 1-Triad, 300V)

Belden 1031A is a power limited tray cable designed for industrial instrumentation and control applications.

This cable contains one triad of 16 AWG, 7-strand bare copper conductors with an overall Beldfoil shield. Rated for 300V, the cable uses Polyvinylchloride (PVC) insulation and a Polyvinylchloride (PVC) jacket, with 0.037-inch jacket thickness and nominal outside diameter of 0.271 inches. The cable is approved to NEC Type PLTC/ITC/CMG and CSA Type CMG FT4 standards. Approximate weight is 58 lbs/MFT with E1 color coding.

To explore additional configurations and related part numbers, browse the full Belden cable product line.

Contact Allied Wire & Cable for pricing, availability, and technical support.

Frequently Asked Questions

What is the conductor configuration of Belden 1031A?

Belden 1031A features one triad of 16 AWG conductors.

What is the voltage rating of Belden 1031A?

This cable is rated for 300 volts.

What shielding does Belden 1031A have?

This cable has an overall Beldfoil shield.

What NEC type is Belden 1031A?

Belden 1031A is rated NEC Type PLTC/ITC/CMG.
