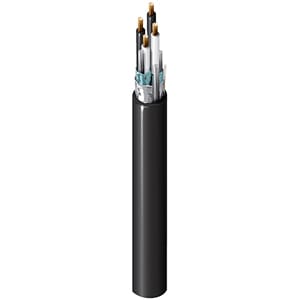

1045A - Tray Cable (16 AWG, 24-Pair, 600V)

Belden 1045A is a multi-pair tray cable designed for industrial instrumentation and control applications.

This cable features 24 pairs of 16 AWG, 7-strand bare copper conductors with individually foil shielded pairs and an overall Beldfoil shield. Rated for 600V, the cable uses Polyvinylchloride (PVC)/Nylon insulation and a Polyvinylchloride (PVC) jacket, with 0.085-inch jacket thickness and nominal outside diameter of 1.272 inches. The cable is approved to NEC Type TC/NPLF and CSA Type FT4 standards. Approximate weight is 993 lbs/MFT with E1 color coding.

To explore additional configurations and related part numbers, browse the full Belden cable product line.

Contact Allied Wire & Cable for pricing, availability, and technical support.

Frequently Asked Questions

How many pairs does Belden 1045A have?

Belden 1045A contains 24 individually foil shielded pairs.

What is the voltage rating of Belden 1045A?

This cable is rated for 600 volts.

What shielding does Belden 1045A use?

Belden 1045A has individual foil shields on each pair plus an overall Beldfoil shield.

What NEC type is Belden 1045A?

Belden 1045A is rated NEC Type TC/NPLF.
