- Color: Black
- Length (in): 8.3
- Material: Polyamide 6.6 Heat Stabilized
- Max. Bundle Dia. (in): 1.97
- Min. Bundle Dia. (in): 0.12
- Min. Tensile Strength: 22.43 kgf, 50 lbs
- Operating Temp.: -40 to 221F (-40 to 105C)
- Recommended Application Tool: 110-03500, 110-05005, 110-06000, 110-07000, 110-07101, 110-70083, 110-70084, 110-80000, 110-95000
- Thickness (in): 0.06
- Toothing (Serration): Inside Serrated
- Weight per piece (lbs): 0.0028660094084034
- Width (in): 0.19

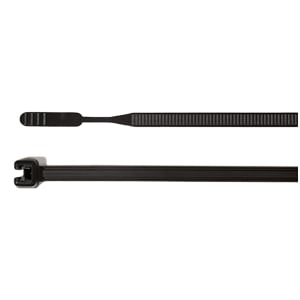

Q-Ties have a distinctive open-style head, a pre-lock function, and a large ribbed tail. Part number 109-00105 provides this functionality. The easily detectable slot opening offered with the tail and tie head provides ease of placement when working with gloves or for blind applications with limited view of the installation. The pre-lock feature allows for temporary holding of cable and wire bundles, permitting additional cables and wires to be placed without destroying the cable tie. Q-Ties can be tensioned by hand or with one of HellermannTyton's mechanical cable tie application tools.
PA66HS cable ties are heat stabilized for excellent heat resistance. Open-head design with easily detectable slot opening allows for fast and easy insertion. Pre-lock feature allows for a temporary hold while preparing bundle. Large ribbed tail ensures simple. ergonomic installation.
The product is made from Polyamide 6.6 heat stabilized (PA66HS) and is engineered for an operating temperature range of -40F to +221F (-40C to +105C) and is supplied in Black (BK) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor and Outdoor Use.
Diameter specifications include Bundle Diameter Max. (Imperial) 1.97"; Bundle Diameter Max. (Metric) 50.0mm; Bundle Diameter Min. (Imperial) 0.12"; Bundle Diameter Min. (Metric) 3.0mm.
It is available in a length of 8.3", 210mm.
Tensile strength is rated at 50 lbs, 22.43 kgf, 220 N.
Recommended cutting tools include 110-03500; 110-05005; 110-06000; 110-07000; 110-07101; 110-70083; 110-70084; 110-80000; 110-95000.
This product is suitable for applications in Automotive Industry; Electrical Installation; Electronics Industry; Industrial Automation; OEM Industry; Panel Building; Solar Energy Sector; Telecommunication; Wire Processing.
Cable Tie Closure plastic pawl Releasable Closure No Thickness T (Imperial) 0.06" Thickness T (Metric) 1.5mm Toothing (Serration) Inside Serrated Variant Inside Serrated Weight per 1 Content Unit without Packaging 0.0013 kg Width W (Imperial) 0.19" Width W (Metric) 4.7mm.
