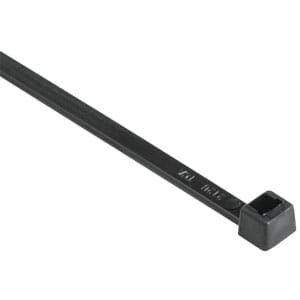

111-01128
- Color: Black
- Length (in): 15
- Material: Polyamide 6.6 High Impact Modified, Heat and UV Stabilized
- Max. Bundle Dia. (in): 4.33
- Min. Bundle Dia. (in): 0.06
- Min. Tensile Strength: 22.94 kgf, 50 lbs
- Operating Temp.: -40 to 221F (-40 to 105C)
- Recommended Application Tool: 110-03500, 110-05005, 110-06000, 110-07000, 110-07101, 110-70083, 110-70084, 110-80000, 110-80001
- Thickness (in): 0.05511814
- Toothing (Serration): Inside Serrated
- Weight per piece (lbs): 0.0059524810789917
- Width (in): 0.19
Manufactured from a specially formulated impact-resistant, heat and UV stabilized PA66 material, these cable ties offer increased flexibility, impact strength, heat and UV resistance to endure moisture fluctuations. Part number 111-01128 provides this functionality. T-Series Cable Ties feature inside serrations to provide a positive hold on wire and cable bundles. The head design guarantees high tensile strength and a low insertion force. The bent tail design allows quick and simple installations by hand. For high-volume applications, tensioning tools are available to ensure consistent and safe installation.
High impact. heat and UV stabilized cable ties contain an impact modifier allowing greater flexibility and greater resistance to vibration. Inside serrations allow for strong grip on cables and wire bundles. Head design provides high tensile strength with very low insertion force. Bent tail ensures a quick and simple installation.
The product is made from Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) and is engineered for an operating temperature range of -40F to +221F (-40C to +105C) and is supplied in Black (BK) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor and Outdoor Use.
Diameter specifications include Bundle Diameter Max. (Imperial) 4.33"; Bundle Diameter Max. (Metric) 110.0mm; Bundle Diameter Min. (Imperial) 0.06"; Bundle Diameter Min. (Metric) 1.5mm.
It is available in a length of 15.0", 390.0mm.
Tensile strength is rated at 50 lbs, 22.94 kgf, 225 N.
Recommended cutting tools include 110-03500; 110-05005; 110-06000; 110-07000; 110-07101; 110-70083; 110-70084; 110-80000; 110-80001.
This product is suitable for applications in Solar Energy Sector; Wind Energy Sector; Rail Transportation Sector; Electronics Industry; Aerospace Industry; Shipbuilding; Defence Industry.
Cable Tie Closure plastic pawl Cable Tie Head Length (Imperial) 0.28" Cable Tie Head Length (Metric) 7.2mm Cable Tie Head Width (Imperial) 0.32" Cable Tie Head Width (Metric) 8.1mm Releasable Closure No Thickness T (Metric) 1.4mm Toothing (Serration) Inside Serrated Variant Inside Serrated Weight per 1 Content Unit without Packaging 0.0027 kg Width W (Imperial) 0.19" Width W (Metric) 4.8mm.
