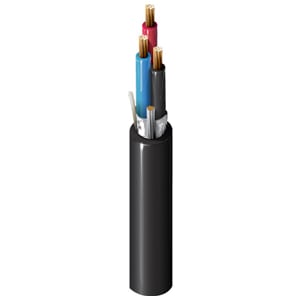

1119A - Tray Cable (16 AWG, 1-Triad, 600V)

Belden 1119A is a tray cable designed for industrial instrumentation and control applications.

This cable contains one triad of 16 AWG, 7-strand bare copper conductors with an overall Beldfoil shield. Rated for 600V, the cable uses Polyvinylchloride (PVC)/Nylon insulation and a Polyvinylchloride (PVC) jacket, with 0.047-inch jacket thickness and nominal outside diameter of 0.31 inches. The cable is approved to NEC Type TC/NPLF and CSA Type FT4 standards. Approximate weight is 31 lbs/MFT with E2 color coding.

To explore additional configurations and related part numbers, browse the full Belden cable product line.

Contact Allied Wire & Cable for pricing, availability, and technical support.

Frequently Asked Questions

What is the conductor configuration of Belden 1119A?

Belden 1119A features one triad of 16 AWG conductors.

What is the voltage rating of Belden 1119A?

This cable is rated for 600 volts.

What shielding does Belden 1119A have?

This cable has an overall Beldfoil shield.

What NEC type is Belden 1119A?

Belden 1119A is rated NEC Type TC/NPLF.
