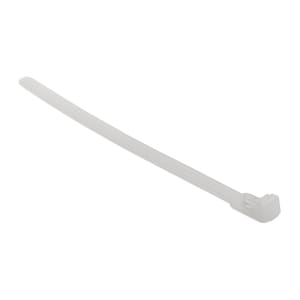

Releasable Cable Ties feature an integrated release mechanism on the head, allowing for changeouts without destroying the cable tie. Part number 115-00054 provides this functionality. The head design ensures consistently high tensile strength, even after repeated use. Rounded tail glides into head with low insertion force.
Release feature allows maintenance or changeouts as needed. Polyamide 6.6 cable ties deliver excellent resistance to chemicals and salts. Inside serrations provide strong grip on cables and wire bundles. Reliable bundle fastening plus low insertion force for ease of use.
The product is made from Polyamide 6.6 (PA66) and is engineered for an operating temperature range of -40F to +185F (-40C to +85C) and is supplied in Natural (NA) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor Use Only.
Diameter specifications include Bundle Diameter Max. (Imperial) 2.83"; Bundle Diameter Max. (Metric) 72.0mm; Bundle Diameter Min. (Imperial) 0.1"; Bundle Diameter Min. (Metric) 2.5mm.
It is available in a length of 9.8", 250.0mm.
Tensile strength is rated at 50 lbs, 22.94 kgf, 225 N.
Cable Tie Head Height (metric) 7.8mm Cable Tie Head Length (Metric) 19mm Cable Tie Head Width (Metric) 11.0mm Fixation Method Releasable Cable Tie Height H2 (Metric) 9.2mm Releasable Closure Yes Thickness T (Metric) 1.2mm Width W (Imperial) 0.29" Width W (Metric) 7.4mm.
Order today for reliable performance and quality.
115-00054
Part Number
115-00054
Attributes
Natural
0.36
9.8
Polyamide 6.6
2.83
0.1
22.94 kgf, 50 lbs
-40 to 185F (-40 to 85C)
0.04724412
0.29
