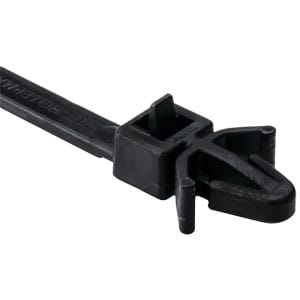

One-piece mounting ties offer a complete solution by bundling cables while at the same time providing a mounting solution. Part number 115-06960 provides this functionality. This tie features an extended pawl, allowing the user to release the tie for bundle maintenance. Push mount ties offer the ideal combination of high specification materials and superior design to suit the mounting and bundling needs of complex applications.

An all-in-one bundling and fixing solution reduces costs. High-specification materials and superior design suit the fixing and bundling needs of complex applications. Releasable to provide quick access to bundles.

The product is made from Polyamide 6.6 (PA66) and is engineered for an operating temperature range of -40F to +185F (-40C to +85C) and is supplied in Black (BK) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor and Outdoor Use.

Diameter specifications include Bundle Diameter Max. (Imperial) 1.97"; Bundle Diameter Max. (Metric) 50.0mm; Bundle Diameter Min. (Imperial) 0.24"; Bundle Diameter Min. (Metric) 6.0mm; Mounting Hole Diameter D (Imperial) 0.25 - 0.28"; Mounting Hole Diameter D (Metric) 6.4 - 7.0mm; Mounting Hole Diameter D Max. (Imperial) 0.28"; Mounting Hole Diameter D Max. (Metric) 7.0mm; Mounting Hole Diameter D Min. (Imperial) 0.25"; Mounting Hole Diameter D Min. (Metric) 6.4mm.

It is available in a length of 9.0", 225mm.

Tensile strength is rated at 50 lbs, 22.94 kgf, 225 N.

Recommended cutting tools include 110-03500; 110-05005; 110-07000; 110-07101; 110-70083; 110-80000; 110-80003.

This product is suitable for applications in Automotive Industry; Electronics Industry; Defence Industry.

Anti rotation (Yes / No) NO Fixation Method Arrowhead Height H (Imperial) 0.24" Height H (Metric) 6mm Mounting Hole Shape Round Panel Thickness (Imperial) 0.03 - 0.31" Panel Thickness (Metric) 0.8 - 3.0mm Panel Thickness Max. (Imperial) 0.31" Panel Thickness Max. (Metric) 3.0mm Panel Thickness Min. (Imperial) 0.03" Panel Thickness Min. (Metric) 0.8mm Releasable Closure Yes Thickness T (Imperial) 0.055" Thickness T (Metric) 1.4mm Toothing (Serration) Inside Serrated Variant Inside Serrated Weight per 1 Content Unit without Packaging 0.001993 kg Width W (Imperial) 0.2" Width W (Metric) 5.0mm Width W2 (Imperial) 0.6" Width W2 (Metric) 14.7mm.

Order today for reliable performance and quality.
