- Color: Black
- Length (in): 8.3
- Material: Polyamide 6.6 UV Stabilized
- Max. Bundle Dia. (in): 1.85
- Min. Bundle Dia. (in): 0.31
- Min. Tensile Strength: 176 lbs, 80.05 kgf
- Operating Temp.: -40 to 185F (-40 to 85C)
- Recommended Application Tool: 121-00680
- Thickness (in): 0.091
- Toothing (Serration): Not Serrated
- Weight per piece (lbs): 0.0063052206984875
- Width (in): 0.32

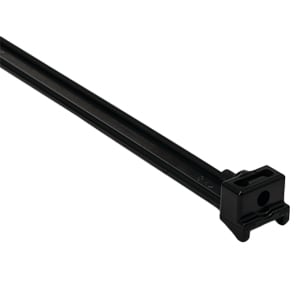

The patented Kabelrap cable tie design offers a smooth strap which is locked into place with a glass fiber reinforced pin. Part number 121-82160 provides this functionality. The curved head design provides full circumferential compression around the bundle or harness. Once applied with the required KR6/8 manual tool, the tie offers a secure and vibration resistant assembly.
Kabelrap tie offers a smooth strap providing secure assembly without damaging cables or hoses. Curved head design provides full circumferential compression which offers vibration resistance.
The product is made from Polyamide 6.6 UV-stabilized (PA66UV) and is engineered for an operating temperature range of -40F to +185F (-40C to +85C) and is supplied in Black (BK) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor and Outdoor Use.
Diameter specifications include Bundle Diameter Max. (Imperial) 1.85"; Bundle Diameter Max. (Metric) 47.0mm; Bundle Diameter Min. (Imperial) 0.31"; Bundle Diameter Min. (Metric) 8.0mm.
It is available in a length of 8.3", 210.0mm.
Tensile strength is rated at 176 lbs, 80.05 kgf, 785 N.
Recommended cutting tools include 121-00680.
This product is suitable for applications in Wind Energy Sector;Rail Transportation Sector;Automotive Industry;Electronics Industry;Aerospace Industry;Defence Industry.
Cable Tie Closure fibreglass pin Cable Tie Head Height (metric) 7.5mm Cable Tie Head Length (Imperial) 0.31" Cable Tie Head Length (Metric) 8mm Cable Tie Head Width (Imperial) 0.46" Cable Tie Head Width (Metric) 11.6mm Fixation Method Cable Tie Releasable Closure No Thickness T (Imperial) 0.091" Thickness T (Metric) 2.3mm Toothing (Serration) Not Serrated Variant Not Serrated Weight per 1 Content Unit without Packaging 0.00286 kg Width W (Imperial) 0.32" Width W (Metric) 8.0mm.
