133-01478
- Color: Black
- Height (in): 0.6
- Hole Diameter (in): 0.24 - 0.27
- Length (in): 3.53
- Length L2 (in): 1.87
- Material: Polypropylene 20% Talkum
- Operating Temp.: -40 to 149F (-40 to 65C)
- Weight per piece (lbs): 0.0091866624652438
- Width (in): 0.06

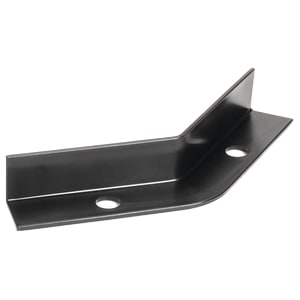

HellermannTyton Mini Channels provide protection and configurable routing in a cost-effective wire management solution. Part number 133-01478 provides this functionality. The variety of sizes and configurations enables engineers and installers to create optimum routing scenarios. Mini channels replace engineered channels that are costly to design and develop.
Angled channel provides specific guidance around corners or obstructions. Mounting holes for cable ties allow for easy bundling. Polypropylene material provides good chemical and heat resistance. Design protects bundles against abrasion and other environmental factors.
The product is made from Polypropylene 20% Talkum (PPTD20) and is engineered for an operating temperature range of -40F to +149F (-40C to +65C) and is supplied in Black (BK) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor Use Only.
Diameter specifications include Mounting Hole Diameter D (Imperial) 0.24 - 0.27"; Mounting Hole Diameter D (Metric) 6.1 - 6.9mm; Mounting Hole Diameter D Max. (Imperial) 0.27"; Mounting Hole Diameter D Max. (Metric) 6.9mm; Mounting Hole Diameter D Min. (Imperial) 0.24"; Mounting Hole Diameter D Min. (Metric) 6.1mm.
It is available in a length of 3.53", 89.7mm, 1.87", 47.6mm.
Angle 45 Height H (Imperial) 0.60" Height H (Metric) 15.0mm Variant 135 Weight per 1 Content Unit without Packaging 0.004167 kg Width W (Imperial) 0.06" Width W (Metric) 15.0mm.
Order today for reliable performance and quality.
