133-04043
- Color: Black
- Material: Polyamide 6.6, High Impact Modified, Heat Stabilized
- Operating Temp.: -40 to 230F (-40 to 110C)
- Panel Thickness (in): 0.02 - 0.20

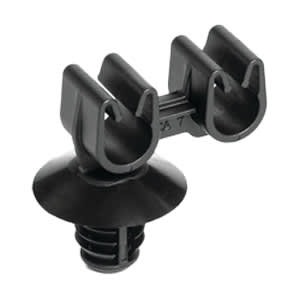

Tube and Pipe Clip with 8mm Fir Tree, 2x 6.5-7.0mm Diameter, PA66HIRHS, Black, 3000/ctn Part number 133-04043 provides this functionality.
Secures two routings together while keeping them separated. to prevent chafing or heat transfer Inverted retaining legs and narrow opening prevent inadvertent disengagement Controlled flex and angled entry promote easy installation Robust arrowhead design provides low insertion effort yet delivers exceptional retention strength in an 8mm hole.
The product is made from Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS) and is engineered for an operating temperature range of -40F to +230F (-40C to +110C) and is supplied in Black (BK) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor and Outdoor Use.
Fixation Method Fir Tree Panel Thickness (Imperial) 0.02 - 0.20" Panel Thickness (Metric) 0.6 - 5.5mm Panel Thickness Max. (Imperial) 0.22" Panel Thickness Max. (Metric) 5.5mm Panel Thickness Min. (Imperial) 0.02" Panel Thickness Min. (Metric) 0.6mm.
