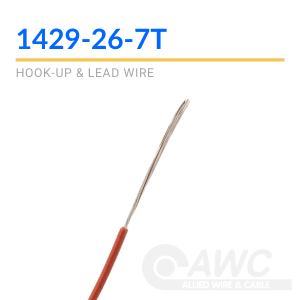

1429-26-7T — 26 AWG Hook-Up Wire
Our UL 1429-26-7T wire meets the military specification requirements for MIL-W-16878/1 and has a 150-volt rating and a maximum operating temperature of 80°C in 26 AWG. UL 1429-26-7T appliance and hookup wire is UL-approved and uses irradiated cross-linked polyvinyl chloride (PVC) insulation so the wire does not burn or become soft when heated.
1429-26-7T
Part Number
1429-26-7T
Attributes
Approx LBS/MFT
2.00
AWG Size
26
Cond. Material
Tinned Copper
Conductor Stranding
7/34
CSA Type
AWM
Insul. Material
XLPVC
Max. Temp
80C
Min. Temp
-55C
No. of Strands
7
Nom. Insul. Thick. (in)
0.01
Nom. O.D. (in)
.0390
Strand Size
34
UL Style
1429
Voltage
150
