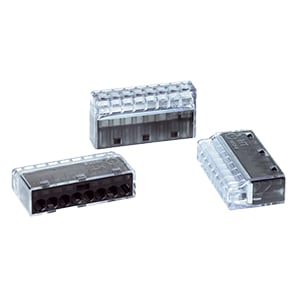

148-90041 — HellermannTyton HelaCon Plus Mini
HelaCon Plus Mini Wire Connectors replace traditional twist-on wire connectors. They provide faster, easier and more reliable connection and distribution of cable and conductors in electrical installation applications. Mini connectors have a compact footprint and can be applied tool-free using convenient, push-in simplicity. Internal spring technology is approved for solid and stranded wires.
Key Specifications:
- 8-port design
- spring clamp technology
Features & Benefits
- Spring technology for safe, secure and reliable connections.
- Smaller footprint fits in tight spaces.
- Low insertion force makes installation of solid or stranded copper wire fast and easy.
- Color coded for easy identification of size.
- Each port accepts multiple wire diameters for flexible applications.
- Accepts 1222 AWG solid wire and 1422 AWG stranded wire.
148-90041
Part Number
148-90041
Attributes
Amps
24
Application
For Indoor Use Only; Electrical Installation, Shipbuilding, Telecommunication
Collection Name
HelaCon Plus
Color
Clear, Black
Depth (in)
0.65
Height (in)
0.3
Length (in)
0.65
Material
Polycarbonate
Max Voltage
600V
Operating Temp.
-22 to 185F (-30 to 85C)
Strip Length (in)
0.43
Weight per piece (lbs)
0.0031 kg
Width (in)
1.44
