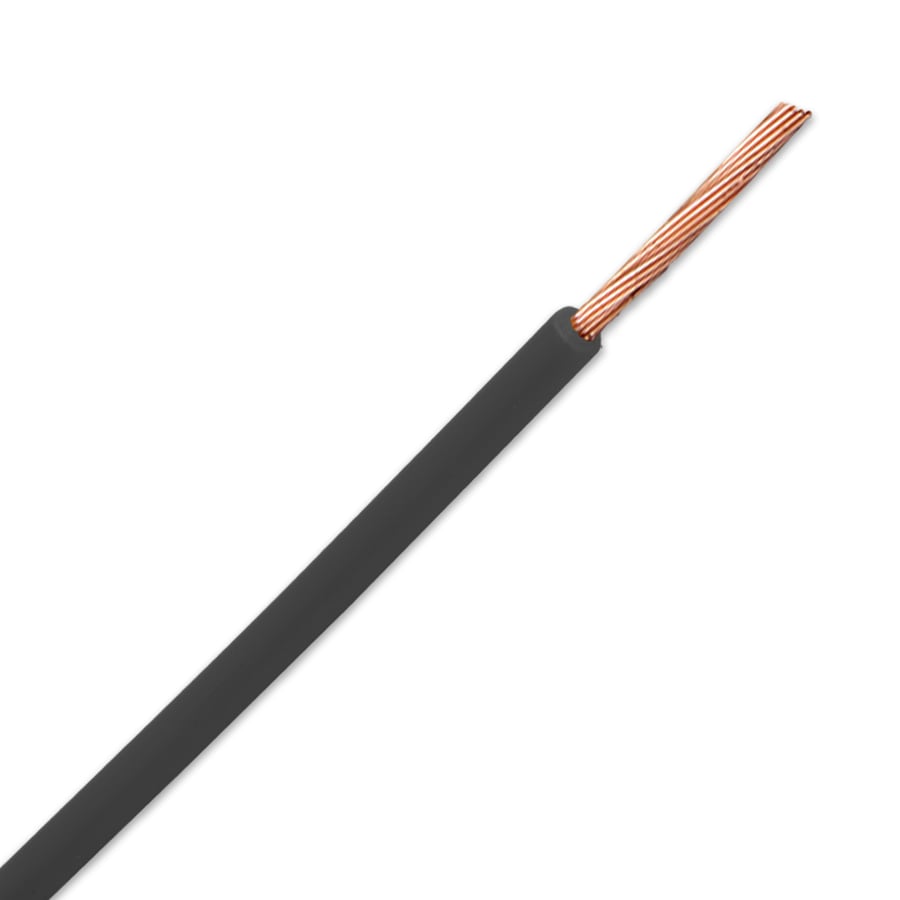

15-18-16B — 18 Gauge Hook-Up Wire
Discover the 15-18-16B UL 1015 hook-up wire, a versatile choice in our Hook Up Wire / Lead Wire line. This 18 AWG wire features a bare copper conductor with 16/30 stranding and PVC insulation, weighing 10.16 lbs/MFT with a nominal outer diameter of 0.11 inches. Rated for 600 volts and temperatures from -40C to 105C, it meets UL 1015/1230/1032/MTW and CSA Type TEW standards. Ideal for industrial machinery, automotive projects, or household appliances, this wire ensures reliable performance. Order now from Allied Wire & Cable!
15-18-16B
Part Number
15-18-16B
Attributes
No. of Cond.
1
Approx LBS/MFT
10.16, 9.80
AWG Size
18
Cond. Material
Bare Copper
Conductor Stranding
16/30
CSA Type
TEW
Insul. Material
Polyvinylchloride (PVC)
Max. Resistance @ 20C OHMS/MFT
6.48
Max. Temp
105C
Mil-Spec
MIL-W-16878/3
Min. Temp
-40C
No. of Strands
16
Nom. Insul. Thick. (in)
0.031
Nom. O.D. (in)
0.0450, 0.1100
Strand Size
30
UL Style
1015/1230/1032/MTW, UL 1015, UL VW-1, UL 1013
Voltage
600
