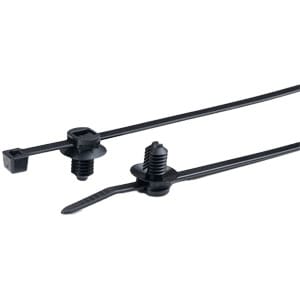

150-31093

202.79 /

Color: Black
Height (in): 0.05
Height H2 (in): 0.44
Hole Diameter (in): 0.26 - 0.28
Length (in): 6
Length L2 (in): 0.46
Length L3 (in): 0.54
Material: Polyamide 6.6 Heat Stabilized, Polyamide 6.6, High Impact Modified, Heat Stabilized
Max. Bundle Dia. (in): 1.18
Min. Bundle Dia. (in): 0.16
Min. Tensile Strength: 22.94 kgf, 50 lbs
Operating Temp.: -40 to 221F (-40 to 105C)
Panel Thickness (in): 0.03 - 0.24
Recommended Application Tool: 110-03500, 110-05005, 110-07000, 110-07101, 110-70083, 110-70084, 110-80000, 110-80001
Shape: Round
Thickness (in): 0.05
Toothing (Serration): Inside Serrated
Weight per piece (lbs): 0.0035053499687396
Width (in): 0.18
Width W2 (in): 0.35
Width W3 (in): 0.2
