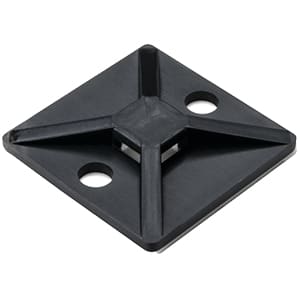

MB4A adhesive mounts are for use with HellermannTyton T18 - T50 Series cable ties to provide stability when securing bundles. Part number 151-00810 provides this functionality. The high-bond acrylic adhesive-backed mounts can be used to secure a bundle and have two predrilled holes to extend mounting options.

For use with HellermannTyton T18 - T50 cable ties to provide stability when securing bundles. 4-way opening allows cable ties to be installed parallel or perpendicular to bundles. The high bond acylic based adhesive is ideal for outdoor applications. with a static load weight of 1.1 lb. Two predrilled holes extend mounting options and solutions. Extended adhesive liner is easy to remove quickly.

The product is made from Polyamide 6.6 UV-resistant (PA66UV) and is engineered for an operating temperature range of -40F to +185F (-40C to +85C), -31F to +158F (-35 C to +70 C) and is supplied in Black (BK) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor and Outdoor Use.

Diameter specifications include Mounting Hole Diameter D (Imperial) 0.18"; Mounting Hole Diameter D (Metric) 4.6mm.

It is available in a length of 1.12", 28.5mm.

Adhesive Acrylate with base of acrylic foam Cable Tie Width Max. (Imperial) 0.18" Fixation Method Adhesive For Cable Ties T18 - T50 Height H (Imperial) .23" Height H (Metric) 5.8mm Maximum Recommended Load (imperial) 1.1 lbf-ft Maximum Recommended Load (metric) 0.50 kgf Maximum recommended load (N) 4.893 N Mounting Hole Centers (Imperial) 0.8" Mounting Hole Centers (Metric) 20.2mm Mounting Screw Type #8 Screw Width W (Imperial) 1.12" Width W (Metric) 28.5mm.
