151-00927
- Color: Black
- Height (in): 1.32
- Hole Diameter (in): 0.26
- Material: Polyamide 6.6 High Impact Modified, Heat and UV Stabilized
- Max. Bundle Dia. (in): 0.3
- Min. Bundle Dia. (in): 0.24
- Operating Temp.: -40 to 221F (-40 to 105C)
- Panel Thickness (in): 0.03 - 0.25
- Weight per piece (lbs): 0.0036376273260505
- Width (in): 0.72
- Width W2 (in): 0.32

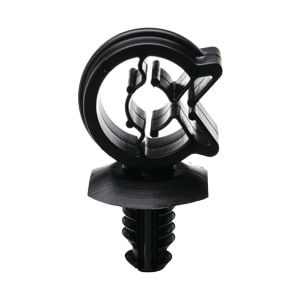

The C Clip with fir tree mount is ideal for panels with pre-drilled holes. Part number 151-00927 provides this functionality. Easy installation by hand eliminates the need for any tools. Once installed, the cable simply snaps into the clip. The cable can be removed and reinstalled without removing the clip. Made from PA66HIRHSUV material, the clip offers increased flexibility along with heat resistance and UV stability.
Pre-drilled holes allows for easy installation by hand. Cable can be removed and reinstalled without removing the clip. providing multiple use options. Made of PA66HIRHSUV material for withstanding extreme conditions.
The product is made from Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) and is engineered for an operating temperature range of -40F to +221F (-40C to +105C) and is supplied in Black (BK) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor and Outdoor Use.
Diameter specifications include Attaches to Diameter (Metric) 6.0 - 7.6; Bundle Diameter Max. (Imperial) 0.3"; Bundle Diameter Max. (Metric) 7.6mm; Bundle Diameter Min. (Imperial) 0.24"; Bundle Diameter Min. (Metric) 6.0mm; Disc Diameter (Imperial) 0.73"; Disc Diameter (Metric) 18.55mm; Mounting Hole Diameter D (Imperial) 0.26"; Mounting Hole Diameter D (Metric) 6.6mm; Mounting Hole Diameter D Max. (Metric) 6.6mm; Mounting Hole Diameter D Min. (Metric) 6.6mm.
This product is suitable for applications in Automotive Industry;Solar Energy Sector;Wind Energy Sector.
Fixation Method Fir Tree Height H (Imperial) 1.32" Height H (Metric) 33.43mm Panel Thickness (Imperial) 0.03 - 0.25" Panel Thickness (Metric) 0.7 - 6.35mm Panel Thickness Max. (Imperial) 0.25" Panel Thickness Max. (Metric) 6.35mm Panel Thickness Min. (Imperial) 0.03" Panel Thickness Min. (Metric) 0.7mm Weight per 1 Content Unit without Packaging 0.00165 kg Width W (Imperial) 0.72" Width W (Metric) 18.26mm Width W2 (Imperial) 0.32" Width W2 (Metric) 8.0mm.
