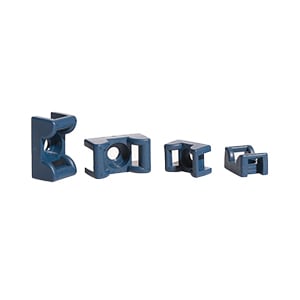

Designed specifically for holding heavier cable bundles these mounting bases can be used in many industries from agriculture to truck manufacture. Part number 151-00950 provides this functionality. They offer a very secure fixing and can be used with a wide variety of heavy duty cable ties up to 8.3mm width.

KR/CTM series are designed to provide stability to wire bundles. These mounts can accommodate miniature. intermediate. or standard cross-section cable ties. Each mount is secured with a single screw.

The product is made from Polyamide 6.6, metal detectable (PA66MD) and is engineered for an operating temperature range of -40F to +185F (-40C to +85C) and is supplied in Blue (BU) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor Use Only.

Diameter specifications include Mounting Hole Diameter D (Imperial) 0.18"; Mounting Hole Diameter D (Metric) 4.5mm; Mounting Hole Diameter D Max. (Metric) 4.5mm; Mounting Hole Diameter D Min. (Metric) 4.5mm.

It is available in a length of 0.70", 17.8mm.

This product is suitable for applications in Food Industry.

Cable Tie Width Max. (Imperial) 0.25" Fixation Method Screw Mount For Cable Ties MCT18 - MCT50, MCTS-Series Height H (Imperial) 0.35" Height H (Metric) 8.8mm Mounting Hole Shape Round Mounting Screw Type M4 Screw Weight per 1 Content Unit without Packaging 0.001 kg Width W (Imperial) 0.46" Width W (Metric) 11.8mm.

Order today for reliable performance and quality.
