HELLERMANNTYTON

151-01049

151-01049
888.45 /
151-01049
  • Color: Black
  • Depth (in): 0.47
  • Height (in): 1.95
  • Hole Diameter (in): 0.24 x 0.48, 0.26 x 0.49, 0.26 x 0.51, 0.28 x 0.47
  • Length (in): 1.24
  • Material: Polyamide 6.6 High Impact Modified, Heat and UV Stabilized
  • Max. Bundle Dia. (in): 0.75
  • Min. Bundle Dia. (in): 0.59
  • Nominal Bundle Diameter (in): 0.59 - 0.75
  • Operating Temp.: -40 to 221F (-40 to 105C)
  • Panel Thickness (in): 0.02 - 0.27
  • Shape: Oval
  • Weight per piece (lbs): 0.0083114272843699
  • Width (in): 0.47

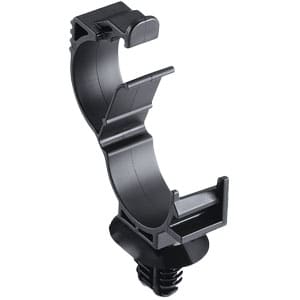

The Locking Clamp is ideal for fastening wire and cable bundles to panels. Part number 151-01049 provides this functionality. Its uniquely engineered fir tree holds tightly in pre-stamped hole sizes from 9x12mm to 9x14mm. The locking clamp mechanism dynamically fits various bundle sizes, while an integrated cable tie saddle allows installers to add additional cable runs. The clamp is manufactured of an impact-modified Polyamide 6.6 material for increased flexibility, heat resistance and UV stabilization to deliver years of dependable performance. It is easy to install and operate with a single hand and does not require tools, saving time and labor costs.

The 360 degree locking enclosure dynamically fits a range of bundle sizes. Clamp can be opened for bundle maintenance. Low-profile release tab won't interfere with bundle or nearby routing. Non-rotating fir tree demonstrates easy insertion with high extraction resistance.

The product is made from Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) and is engineered for an operating temperature range of -40F to +221F (-40C to +105C) and is supplied in Black (BK) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor and Outdoor Use.

Diameter specifications include Bundle Diameter Max. (Imperial) 0.75"; Bundle Diameter Max. (Metric) 19.0mm; Bundle Diameter Min. (Imperial) 0.59"; Bundle Diameter Min. (Metric) 15.0mm; Mounting Hole Diameter D (Imperial) 0.24 x 0.48"; 0.26 x 0.49"; 0.26 x 0.51"; 0.28 x 0.47"; Mounting Hole Diameter D (Metric) 6.2 x 12.2mm;6.5 x 12.5mm;6.5 x 13.0mm;7.0 x 12.0mm; Mounting Hole Diameter D Max. (Imperial) 0.51"; Mounting Hole Diameter D Max. (Metric) 13.0mm; Mounting Hole Diameter D Min. (Imperial) 0.24"; Mounting Hole Diameter D Min. (Metric) 6.2mm; Nominal Bundle Diameter ND (imperial) 0.59" - 0.75"; Nominal Bundle Diameter ND (metric) 15.0mm - 19.00mm.

It is available in a length of 1.24", 31.6mm.

Depth D (Imperial) 0.47" Depth D (Metric) 12.0mm Fixation Method Fir Tree Height H (Imperial) 1.95" Height H (Metric) 49.5mm Mounting Hole Shape Oval Panel Thickness (Imperial) 0.02 - 0.27" Panel Thickness (Metric) 0.6 - 6.75mm Panel Thickness Max. (Imperial) 0.27" Panel Thickness Max. (Metric) 6.75mm Panel Thickness Min. (Imperial) 0.02" Panel Thickness Min. (Metric) 0.6mm Weight per 1 Content Unit without Packaging 0.00377 kg Width W (Imperial) 0.47" Width W (Metric) 12.0mm.

Order today for reliable performance and quality.
