- Color: Black
- Depth (in): 0.47
- Height (in): 2.27
- Hole Diameter (in): 0.24 - 0.26, 0.24 - 0.28
- Length (in): 1.37
- Material: Polyamide 6.6 High Impact Modified, Heat and UV Stabilized
- Max. Bundle Dia. (in): 0.55
- Min. Bundle Dia. (in): 0.39
- Nominal Bundle Diameter (in): 0.39 - 0.55
- Operating Temp.: -40 to 221F (-40 to 105C)
- Panel Thickness (in): 0.02 - 0.32
- Shape: Round
- Weight per piece (lbs): 0.0063691547545211
- Width (in): 0.47

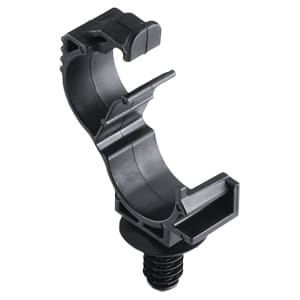

The Locking Clamp is ideal for fastening wire and cable bundles to panels. Part number 151-01166 provides this functionality. Its uniquely engineered fir tree holds tightly in pre-stamped 6.5mm holes. The locking clamp mechanism dynamically fits various bundle sizes, while an integrated cable tie saddle allows installers to add additional cable runs. The clamp is manufactured of an impact-modified Polyamide 6.6 material for increased flexibility, heat resistance and UV stabilization to deliver years of dependable performance. It is easy to install and operate with a single hand and does not require tools, saving time and labor costs.
The 360 degree enclosure ensures the entire bundle is secure when being routed by this clip. Locking tab on this clip is small enough that it will not interfere with any other portion of the wire routing. but is significant enough to allow for manual disengagement if service is needed. Disc around the fir tree eliminates potential debris and water to enter the panel hole.
The product is made from Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) and is engineered for an operating temperature range of -40F to +221F (-40C to +105C) and is supplied in Black (BK) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor and Outdoor Use.
Diameter specifications include Bundle Diameter Max. (Imperial) 0.55"; Bundle Diameter Max. (Metric) 14.0mm; Bundle Diameter Min. (Imperial) 0.39"; Bundle Diameter Min. (Metric) 10.0mm; Mounting Hole Diameter D (Imperial) 0.24 - 0.26 (hexagonal)";0.24 - 0.28"; Mounting Hole Diameter D (Metric) 6.1 - 6.6mm (hexagonal);6.1 - 7.0mm; Mounting Hole Diameter D Max. (Imperial) 0.28"; Mounting Hole Diameter D Max. (Metric) 7.0mm; Mounting Hole Diameter D Min. (Imperial) 0.24"; Mounting Hole Diameter D Min. (Metric) 6.1mm; Nominal Bundle Diameter ND (imperial) 0.39 - 0.55"; Nominal Bundle Diameter ND (metric) 10.0 - 14.0mm.
It is available in a length of 1.37", 34.92mm.
This product is suitable for applications in Solar Energy Sector.
Depth D (Imperial) 0.47" Depth D (Metric) 12.0mm Fixation Method Fir tree for round holes Height H (Imperial) 2.27" Height H (Metric) 57.75mm Mounting Hole Shape Round Panel Thickness (Imperial) 0.02 - 0.32" Panel Thickness (Metric) 0.6 - 8.25mm Panel Thickness Max. (Imperial) 0.32" Panel Thickness Max. (Metric) 8.25mm Panel Thickness Min. (Imperial) 0.02" Panel Thickness Min. (Metric) 0.6mm Weight per 1 Content Unit without Packaging 0.002889 kg Width W (Imperial) 0.47" Width W (Metric) 12.0mm.
