151-01239

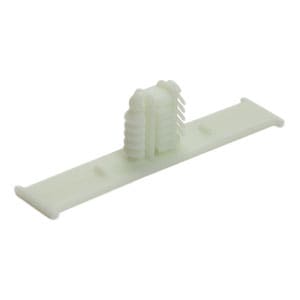

HellermannTyton Bundling Clips are designed to provide simple and easy methods for securing cable bundles, hoses, or pipes. Part number 151-01239 provides this functionality. They are fastened onto the tape bar using tape or cable ties.

The different fixing orientations allow tape clips to be used with a wide range of panel thicknesses and hole diameters.

The product is made from Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS) and is engineered for an operating temperature range of -40F to +230F (-40C to +110C) and is supplied in Natural (NA) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor Use Only.

Diameter specifications include Mounting Hole Diameter D (Imperial) 0.24 x 0.48";0.25 x 0.50";0.25 x 0.50";0.27 x 0.47"; Mounting Hole Diameter D (Metric) 6.2 x 12.2mm;6.5 x 12.5mm;6.5 x 13.0mm;7.0 x 12.0mm; Mounting Hole Diameter D Max. (Imperial) 0.50"; Mounting Hole Diameter D Max. (Metric) 13.0mm; Mounting Hole Diameter D Min. (Imperial) 0.24"; Mounting Hole Diameter D Min. (Metric) 6.2mm.

It is available in a length of 2.28", 58.0mm.

Bundling Bar Length (Imperial) 2.28" Bundling Bar Length (metric) 58.0mm Fixation Method Fir Tree for oval holes Height H (Imperial) 0.60" Height H (Metric) 15.45mm Height H2 (Imperial) 0.55" Height H2 (Metric) 13.95mm Mounting Hole Shape Oval Panel Thickness (Imperial) 0.02 - 0.24" Panel Thickness (Metric) 0.6 - 6.0mm Panel Thickness Max. (Imperial) 0.24" Panel Thickness Max. (Metric) 6.0mm Panel Thickness Min. (Imperial) 0.02" Panel Thickness Min. (Metric) 0.6mm Weight per 1 Content Unit without Packaging 0.00135 kg Width W (Imperial) 0.5" Width W (Metric) 12.0mm.
