- Color: Black
- Height (in): 0.61
- Height H2 (in): 0.51
- Hole Diameter (in): 0.24 x 0.48, 0.25 x 0.50, 0.25 x 0.50, 0.27 x 0.47
- Length (in): 0.93
- Material: Polyamide 6.6 High Impact Modified, Heat and UV Stabilized
- Operating Temp.: -40 to 230F (-40 to 110C)
- Panel Thickness (in): 0.02 - 0.24
- Shape: Oval
- Weight per piece (lbs): 0.0016799224378488
- Width (in): 0.69

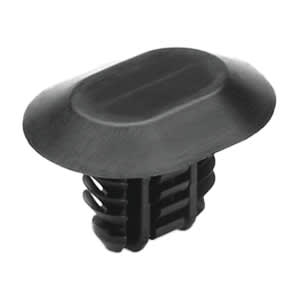

Developed especially for the automotive industry in applications including trunks, doors, wheel housings and dash panels. Part number 151-01245 provides this functionality.
Easy assembly without the need of a tool. Disc covers mounting hole and minimizes ingress of dust. dirt and water. Standard geometry fits common 6.5mm hole size.
The product is made from Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) and is engineered for an operating temperature range of -40F to +230F (-40C to +110C) and is supplied in Black (BK) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor and Outdoor Use.
Diameter specifications include Mounting Hole Diameter D (Imperial) 0.24 x 0.48" 0.25 x 0.50" 0.25 x 0.50" 0.27 x 0.47"; Mounting Hole Diameter D (Metric) 6.2 x 12.2mm;6.5 x 12.5mm;6.5 x 13.0mm;7.0 x 12.0mm; Mounting Hole Diameter D Max. (Imperial) 0.51"; Mounting Hole Diameter D Max. (Metric) 13.0mm; Mounting Hole Diameter D Min. (Imperial) 0.24"; Mounting Hole Diameter D Min. (Metric) 6.2mm.
It is available in a length of 0.93", 23.6mm.
This product is suitable for applications in Automotive Industry.
Fixation Method Fir Tree for oval holes Height H (Imperial) 0.61" Height H (Metric) 15.6mm Height H2 (Imperial) 0.51" Height H2 (Metric) 12.85mm Mounting Hole Shape Oval Panel Thickness (Imperial) 0.02 - 0.24" Panel Thickness (Metric) 0.6 - 6.0mm Panel Thickness Max. (Imperial) 0.24" Panel Thickness Max. (Metric) 6.0mm Panel Thickness Min. (Imperial) 0.02" Panel Thickness Min. (Metric) 0.6mm Weight per 1 Content Unit without Packaging 0.000762 kg Width W (Imperial) 0.69" Width W (Metric) 17.63mm.
Order today for reliable performance and quality.
