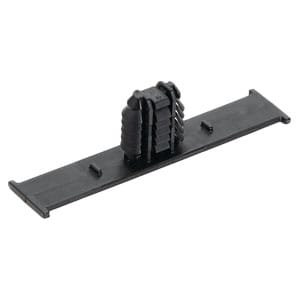

151-01403
- Color: Black
- Height (in): 0.6
- Height H2 (in): 0.55
- Hole Diameter (in): 0.24 x 0.48, 0.25 x 0.50, 0.25 x 0.50, 0.27 x 0.47
- Length (in): 2.28
- Material: Polyamide 6.6 High Impact Modified, Heat and UV Stabilized
- Operating Temp.: -40 to 221F (-40 to 105C)
- Panel Thickness (in): 0.02 - 0.24
- Shape: Oval
- Weight per piece (lbs): 0.0029255342191933
HellermannTyton Bundling Clips are designed to provide simple and easy methods for securing cable bundles, hoses, or pipes. Part number 151-01403 provides this functionality. They are fastened onto the tape bar using tape or cable ties.
The different fixing orientations allow tape clips to be used with a wide range of panel thicknesses and hole diameters.
The product is made from Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) and is engineered for an operating temperature range of -40F to +221F (-40C to +105C) and is supplied in Black (BK) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor and Outdoor Use.
Diameter specifications include Mounting Hole Diameter D (Imperial) 0.24 x 0.48";0.25 x 0.50";0.25 x 0.50";0.27 x 0.47"; Mounting Hole Diameter D (Metric) 6.2 x 12.2mm;6.5 x 12.5mm;6.5 x 13.0mm;7.0 x 12.0mm; Mounting Hole Diameter D Max. (Imperial) 0.50"; Mounting Hole Diameter D Max. (Metric) 13.0mm; Mounting Hole Diameter D Min. (Imperial) 0.24"; Mounting Hole Diameter D Min. (Metric) 6.2mm.
It is available in a length of 2.28", 58.0mm.
Bundling Bar Length (Imperial) 2.28" Bundling Bar Length (metric) 58.0mm Fixation Method Fir Tree for oval holes Height H (Imperial) 0.60" Height H (Metric) 15.45mm Height H2 (Imperial) 0.55" Height H2 (Metric) 13.95mm Mounting Hole Shape Oval Panel Thickness (Imperial) 0.02 - 0.24" Panel Thickness (Metric) 0.5 - 6.0mm Panel Thickness Max. (Imperial) 0.24" Panel Thickness Max. (Metric) 6.0mm Panel Thickness Min. (Imperial) 0.02" Panel Thickness Min. (Metric) 0.5mm Weight per 1 Content Unit without Packaging 0.001327 kg.
Order today for reliable performance and quality.
