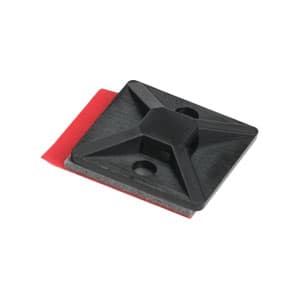

151-01630

MB3A4 adhesive mounts are for use with HellermannTyton T18 - T30 Series cable ties to provide stability when securing bundles. Part number 151-01630 provides this functionality. The high-heat, high-bond acrylic adhesive-backed mounts can be used to secure a bundle and have two predrilled holes to extend mounting options.

For use with HellermannTyton T18 - T30 cable ties to provide stability when securing bundles. 4-way opening allows cable ties to be installed parallel or perpendicular to bundles. The high-heat. high-bond adhesive is ideal for outdoor applications. with a static load weight of 0.6 lb. Two predrilled holes extend mounting options and solutions. Extended adhesive liner is easy to remove quickly.

The product is made from Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) and is engineered for an operating temperature range of -40F to +221F (-40C to +105C), -40F to +176F (-40C to +80C) and is supplied in Black (BK) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor and Outdoor Use.

Diameter specifications include Mounting Hole Diameter D (Imperial) 0.12"; Mounting Hole Diameter D (Metric) 3.0mm.

It is available in a length of 0.75", 19.0mm.

Adhesive Acrylic foam Cable Tie Width Max. (Imperial) 0.14" Fixation Method Adhesive For Cable Ties T18 - T30 Height H (Imperial) .19" Height H (Metric) 4.8mm Maximum Recommended Load (imperial) 0.6 lbf-ft Maximum Recommended Load (metric) 0.27 kgf Maximum recommended load (N) 2.669 N Mounting Hole Centers (Imperial) 0.52" Mounting Hole Centers (Metric) 13.2mm Mounting Screw Type Adhesive Width W (Imperial) 0.75" Width W (Metric) 19.0mm.

Order today for reliable performance and quality.
