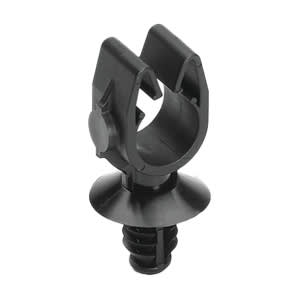

The MOC with Round Fir Tree features HellermannTyton's unique retention clip with an integrated fir tree to fit securely in a 6.5 (+/-0.4)mm hole. Part number 151-01749 provides this functionality. The mount delivers a low insertion force while exhibiting high extraction resistance for a secure mounting point against a panel.

Patented retention design features inverted retaining legs. narrow opening and circular retainer to prevent inadvertent disengagement. Controlled flex and angled entry promote easy installation. Fir tree demonstrates easy insertion with high extraction resistance.

The product is made from Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) and is engineered for an operating temperature range of -40F to +221F (-40C to +105C) and is supplied in Black (BK) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor and Outdoor Use.

Diameter specifications include Bundle Diameter Max. (Imperial) 0.45"; Bundle Diameter Max. (Metric) 11.5mm; Bundle Diameter Min. (Imperial) 0.37"; Bundle Diameter Min. (Metric) 9.5mm; Mounting Hole Diameter D (Imperial) 0.24 - 0.27";0.25 (hexagonal)"; Mounting Hole Diameter D (Metric) 6.1 - 6.9mm;6.35mm (hexagonal); Mounting Hole Diameter D Max. (Imperial) 0.27"; Mounting Hole Diameter D Max. (Metric) 6.9mm; Mounting Hole Diameter D Min. (Imperial) 0.24"; Mounting Hole Diameter D Min. (Metric) 6.1mm; Nominal Bundle Diameter ND (imperial) 0.39"; Nominal Bundle Diameter ND (metric) 10.0mm.

It is available in a length of 0.67", 17.0mm.

Depth D (Imperial) 0.39" Depth D (Metric) 10.0mm Fixation Method Fir Tree Height H (Imperial) 1.39" Height H (Metric) 35.4mm Mounting Hole Shape Circular Panel Thickness (Imperial) 0.02 - 0.22" Panel Thickness (Metric) 0.6 - 5.5mm Panel Thickness Max. (Imperial) 0.22" Panel Thickness Max. (Metric) 5.5mm Panel Thickness Min. (Imperial) 0.02" Panel Thickness Min. (Metric) 0.6mm Weight per 1 Content Unit without Packaging 0.0015 kg.
