- Color: Black
- Depth (in): 0.39
- Height (in): 1.61
- Hole Diameter (in): 0.24 x 0.48, 0.26 x 0.49, 0.26 x 0.51, 0.28 x 0.47, 0.27 x 0.47
- Length (in): 0.93
- Material: Polyamide 6.6 High Impact Modified, Heat and UV Stabilized
- Max. Bundle Dia. (in): 0.62
- Min. Bundle Dia. (in): 0.53
- Nominal Bundle Diameter (in): 0.55
- Operating Temp.: -40 to 221F (-40 to 105C)
- Panel Thickness (in): 0.02 - 0.27
- Shape: Oval
- Weight per piece (lbs): 0.0048435559002018

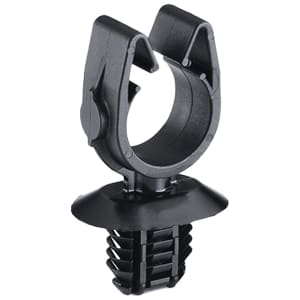

The MOC with Oval Fir Tree features HellermannTyton's unique retention clip attached to a 4x oval fir tree that will not rotate in the mounting hole. Part number 151-01769 provides this functionality. The mount delivers a low insertion force while exhibiting high extraction resistance for a secure mounting point against a panel. This one design exceeds automotive requirements for the four most common oval sizes: 6.2x12.2mm, 6.5x12.5mm, 6.5x13mm and 7x12mm.
Patented retention design features inverted retaining legs. narrow opening and circular retainer to prevent inadvertent disengagement. Controlled flex and angled entry promote easy installation. Non-rotating fir tree demonstrates easy insertion with high extraction resistance.
The product is made from Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) and is engineered for an operating temperature range of -40F to +221F (-40C to +105C) and is supplied in Black (BK) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor and Outdoor Use.
Diameter specifications include Bundle Diameter Max. (Imperial) 0.62"; Bundle Diameter Max. (Metric) 15.8mm; Bundle Diameter Min. (Imperial) 0.53"; Bundle Diameter Min. (Metric) 13.5mm; Mounting Hole Diameter D (Imperial) 0.24 x 0.48"; 0.26 x 0.49"; 0.26 x 0.51"; 0.28 x 0.47"; 0.27" x 0.47"; Mounting Hole Diameter D (Metric) 6.2 x 12.2mm;6.5 x 12.5mm;6.5 x 13.0mm;7.0 x 12.0mm; Nominal Bundle Diameter ND (imperial) 0.55"; Nominal Bundle Diameter ND (metric) 14.0mm.
It is available in a length of 0.93", 23.6mm.
Depth D (Imperial) 0.39" Depth D (Metric) 10.0mm Fixation Method Fir Tree Height H (Imperial) 1.61" Height H (Metric) 40.9mm Mounting Hole Shape Oval Panel Thickness (Imperial) 0.02 - 0.27" Panel Thickness (Metric) 0.6 - 6.75mm Panel Thickness Max. (Imperial) 0.27" Panel Thickness Max. (Metric) 6.75mm Panel Thickness Min. (Imperial) 0.02" Panel Thickness Min. (Metric) 0.6mm Weight per 1 Content Unit without Packaging 0.002197 kg.
Order today for reliable performance and quality.
