- Color: Black
- Depth (in): 0.39
- Diameter (in): 0.185
- Diameter 2 (in): 0.156
- Height (in): 0.72
- Length (in): 0.32
- Material: Polyamide 6.6 High Impact Modified, Heat and UV Stabilized
- Nominal Bundle Diameter (in): 0.16
- Nominal Bundle Diameter 2 (in): 0.2
- Operating Temp.: -40 to 230F (-40 to 110C)

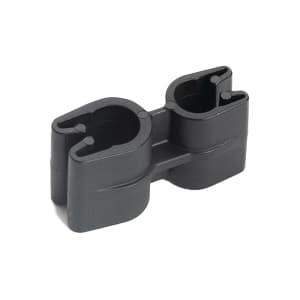

An ultra-secure routing clip connected to a round or oval fixing for easy insertion into an existing panel hole. Part number 151-02451 provides this functionality.
Dual pipe clip secures two routings together while keeping them separated. to prevent chafing or heat transfer Inverted retaining legs and narrow opening prevent inadvertent disengagement Controlled flex and angled entry promote easy installation.
The product is made from Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) and is engineered for an operating temperature range of -40F to +230F (-40C to +110C) and is supplied in Black (BK) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor and Outdoor Use.
Diameter specifications include Diameter D (Imperial) 0.185"; Diameter D (Metric) 4.7mm; Diameter D2 (Imperial) 0.156"; Diameter D2 (Metric) 3.95mm; Nominal Bundle Diameter ND (imperial) 0.16"; Nominal Bundle Diameter ND (metric) 4.2mm; Nominal Bundle Diameter ND2 (imperial) 0.20"; Nominal Bundle Diameter ND2 (metric) 5.1mm.
It is available in a length of 0.32", 8.2mm.
Depth D (Imperial) 0.39" Depth D (Metric) 10.0mm Height H (Imperial) 0.72" Height H (Metric) 18.2mm.
Order today for reliable performance and quality.
