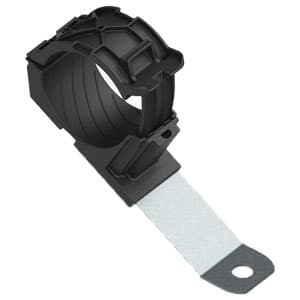

The Ratchet P-Clamp family offers versatility when managing wires, cables and hoses. Part number 151-03145 provides this functionality. The robust design and durable materials make it ideal for heavy duty applications, both indoors and out. The one-piece adjustable clamp can be closed by hand to the desired diameter. The release feature provides easy and nondestructive removal of cables simply by using a flat-head screwdriver. This nondestructive release allows the clamp to be reused without removing or replacing any bolts or screws. Low fire hazard material is designed specifically for rail applications.

One-piece ratchet closure allows for easy installation during pre- or final assembly. Easy release feature simplifies quick adjustments and maintenance. Impact modified. heat and UV stabilized PA66 provides long-term durability. indoors and out. Low fire hazard PA666V0 material is designed specifically for rail applications. Stainless steel mounting plate tolerates high torque and provides superior corrosion resistance against chemicals. salt spray and contact with dissimilar metals. Angled mounting plates are ideal for stacking RPCs or for avoiding obstructions or heat sources.

The product is made from Polyamide 6.6/6, V0 (PA666V0);Stainless Steel (SS304) and is engineered for an operating temperature range of -40F to +248F (-40C to +120C) and is supplied in Black (BK) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor and Outdoor Use.

Diameter specifications include Bundle Diameter Max. (Imperial) 2.01"; Bundle Diameter Max. (Metric) 51.0mm; Bundle Diameter Min. (Imperial) 1.42"; Bundle Diameter Min. (Metric) 36.0mm; Mounting Hole Diameter D (Imperial) 0.327"; Mounting Hole Diameter D (Metric) 8.31mm; Stud Diameter (Metric) M8.

It is available in a length of 8.5", 215.9mm, 5.0", 127.0mm.

Tensile strength is rated at 100 lbs, 445 N.

This product is suitable for applications in Automotive Industry;Defence Industry;Industrial Automation;Marine;Mining Industry;Energy Provider;OEM Industry;Offshore Industry;Panel Building;Rail Transportation Sector;Shipbuilding;Truck Heavy Equipment;Wind Energy Sector;Chemical Industry;Electrical Installation;Electronics Industry;Food Industry.

Angle 30 Fixation Method Screw Mounting Mounting Hole Centers (Imperial) 3.17" Mounting Hole Centers (Metric) 80.5mm Variant Long Width W (Imperial) 1.37" Width W (Metric) 34.9mm Width W2 (Imperial) 1.18" Width W2 (Metric) 30.0mm.

Order today for reliable performance and quality.
