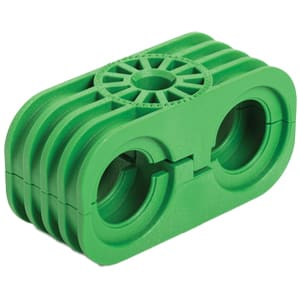

HC Clamps separate multiple bundles and secure them to brackets or frame rails. Part number 151-03254 provides this functionality. Each mount has two pawls for easy pre-installation on a threaded fastener prior to securing with a mechanical fastener. HC Clamps have ribs that make them ideal for convoluted tubing, but they can also be used to separate separate bundles that aren't protected with convoluted tubing.

Separates and secures bundles avoiding abrasion. Designed to handle both convoluted tubing and bundles not covered in convoluted tubing. Come in a variety of sizes and colors to be easily identified.

The product is made from Polyamide 6.6 glass fiber reinforced (PA66GF15%) and is engineered for an operating temperature range of -40F to +257F (-40C to +125C) and is supplied in Green (GN) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor and Outdoor Use.

Diameter specifications include Bundle Diameter 1st Hole Max. (Imperial) 0.677"; Bundle Diameter 1st Hole Max. (Metric) 17.20mm; Bundle Diameter 2nd Hole Max. (Imperial) 0.677"; Bundle Diameter 2nd Hole Max. (Metric) 17.20mm; Bundle Diameter Max. (Imperial) 0.68"; Bundle Diameter Max. (Metric) 17.20mm; Bundle Diameter Min. (Imperial) 0.68"; Bundle Diameter Min. (Metric) 17.20mm; Mounting Hole Diameter D (Imperial) 0.32"; Mounting Hole Diameter D (Metric) 8.2mm.

It is available in a length of 2.72", 69.1mm.

Height H (Imperial) 1.34" Height H (Metric) 34mm Variant Separators Width W (Imperial) 1.12" Width W (Metric) 28.48mm.

Order today for reliable performance and quality.
