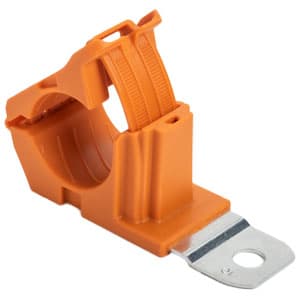

The Ratchet P-Clamp family offers versatility when managing wires, cables and hoses. Part number 151-03461 provides this functionality. The robust design and durable materials make it ideal for heavy duty applications, both indoors and out. The one-piece adjustable clamp can be closed by hand to the desired diameter. The release feature provides easy and nondestructive removal of cables simply by using a flat-head screwdriver. This nondestructive release allows the clamp to be reused without removing or replacing any bolts or screws.

One-piece ratchet closure allows for easy installation during pre- or final assembly. Easy release feature simplifies quick adjustments and maintenance. Impact modified. heat and UV stabilized PA66 provides long-term durability. indoors and out. Zinc-plated steel mounting plate tolerates high torque and is treated to resist chemicals and salt spray. Straight. 180 mounting plate is ideal for applications requiring a flush mount set off from the mounting hole.

The product is made from Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV);Steel (ST);Zinc plated (ZN) and is engineered for an operating temperature range of -40F to +221F (-40C to +105C) and is supplied in Orange (OG), High Voltage (HV) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor and Outdoor Use.

Diameter specifications include Bundle Diameter Max. (Imperial) 1.42"; Bundle Diameter Max. (Metric) 36.0mm; Bundle Diameter Min. (Imperial) 0.76"; Bundle Diameter Min. (Metric) 19.4mm; Mounting Hole Diameter D (Imperial) 0.41"; Mounting Hole Diameter D (Metric) 10.29mm.

It is available in a length of 6.15", 156.1mm, 4.06", 103.0mm.

Tensile strength is rated at 100 lbs, 445 N.

This product is suitable for applications in Automotive Industry;Defence Industry;Industrial Automation;Marine;Mining Industry;Energy Provider;OEM Industry;Offshore Industry;Panel Building;Rail Transportation Sector;Shipbuilding;Truck Heavy Equipment;Wind Energy Sector;Chemical Industry;Electrical Installation;Electronics Industry;Food Industry.

Angle 180 Fixation Method Screw Mounting Height H (Imperial) 1.70" Height H (Metric) 43.2mm Height H2 (Imperial) 2.73" Height H2 (Metric) 69.5mm Mounting Hole Centers (Imperial) 2.45" Mounting Hole Centers (Metric) 62.3mm Releasable Closure Yes Variant Short Width W (Imperial) 1.37" Width W (Metric) 34.9mm.
