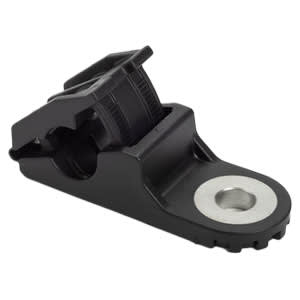

The Mini Ratchet P-Clamp family offers versatility when managing wires, cables and hoses. Part number 151-03624 provides this functionality. The clamp size and design make it an ideal P-clamp replacement for securing sensor wires, brake lines or other wires. The one-piece adjustable clamp can be closed by hand to the desired diameter. The release feature provides easy and nondestructive removal of cables simply by using a flat-head screwdriver. This release feature allows the clamp to be reused without removing or replacing any bolts or screws.

One-piece ratchet closure design allows for easy installation during pre- or final assembly. Accommodates a range of diameters from 4-8mm. reducing part inventory. Compression limiter allows for high-torque fastening with an M6 bolt for a secure mounting option. Clamp interior is designed to guide and center bundle to reduce pinching. Easy-release feature allows for quick adjustments and maintenance. Impact modified. heat and UV stabilized PA66 provides long-term durability. indoors and out. Different mounting options available for various applications.

The product is made from Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) and is engineered for an operating temperature range of -40F to +221F (-40C to +105C) and is supplied in Black (BK) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor and Outdoor Use.

Diameter specifications include Bundle Diameter Max. (Imperial) 0.31"; Bundle Diameter Max. (Metric) 7.874mm; Bundle Diameter Min. (Imperial) 0.15"; Bundle Diameter Min. (Metric) 3.81mm; Mounting Hole Diameter D (Imperial) 0.24"; Mounting Hole Diameter D (Metric) 6.2mm; Stud Diameter (Metric) M6.

It is available in a length of 2.66", 67.7mm, 1.0", 25.1mm.

Tensile strength is rated at 50 lbs, 223 N.

This product is suitable for applications in Automotive Industry;Defence Industry;Industrial Automation;Marine;Mining Industry;Energy Provider;OEM Industry;Offshore Industry;Panel Building;Rail Transportation Sector;Shipbuilding;Truck Heavy Equipment;Wind Energy Sector;Chemical Industry;Electrical Installation;Electronics Industry;Food Industry.

Angle 180 Fixation Method Screw Mounting Mounting Hole Centers (Imperial) 0.98" Mounting Hole Centers (Metric) 25.1mm Variant Short Width W (Imperial) 0.69" Width W (Metric) 17.5mm.

Order today for reliable performance and quality.
