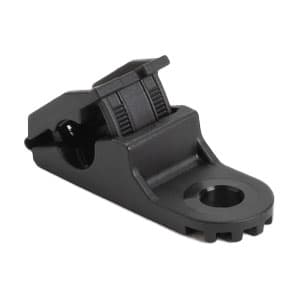

The Mini Ratchet P-Clamp family offers versatility when managing wires, cables and hoses. Part number 151-03625 provides this functionality. The clamp size and design make it an ideal P-clamp replacement for securing sensor wires, brake lines or other wires. The one-piece adjustable clamp can be closed by hand to the desired diameter. The release feature provides easy and nondestructive removal of cables simply by using a flat-head screwdriver. This release feature allows the clamp to be reused without removing or replacing any bolts or screws.

One-piece ratchet closure design allows for easy installation during pre- or final assembly. Fine-pitch ratchet increments enable precise sizing around multiple bundle diameters. reducing part inventory versus one-size clamps. Easy-release feature allows for quick adjustments and maintenance without removal. Impact modified. heat and UV stabilized PA66 provides long-term durability. indoors and out.

The product is made from Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) and is engineered for an operating temperature range of -40F to +221F (-40C to +105C) and is supplied in Black (BK) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor and Outdoor Use.

Diameter specifications include Bundle Diameter Max. (Imperial) 0.31"; Bundle Diameter Max. (Metric) 7.874mm; Bundle Diameter Min. (Imperial) 0.15"; Bundle Diameter Min. (Metric) 3.81mm; Mounting Hole Diameter D (Imperial) 0.25"; Mounting Hole Diameter D (Metric) 6.5mm.

It is available in a length of 2.66", 67.7mm, 1.0", 25.1mm.

Tensile strength is rated at 50 lbs, 223 N.

This product is suitable for applications in Automotive Industry;Defence Industry;Industrial Automation;Marine;Mining Industry;Energy Provider;OEM Industry;Offshore Industry;Panel Building;Rail Transportation Sector;Shipbuilding;Truck Heavy Equipment;Wind Energy Sector;Chemical Industry;Electrical Installation;Electronics Industry;Food Industry.

Angle 180 Fixation Method Screw Mounting Mounting Hole Centers (Imperial) 0.98" Mounting Hole Centers (Metric) 25.1mm Variant Short Width W (Imperial) 0.69" Width W (Metric) 17.5mm.
