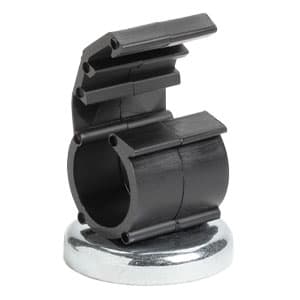

Magnetic clamps route bundles by securing to steel surfaces without the need for a mounting hole. Part number 151-03647 provides this functionality. Simply enclose the wire bundle in the clamp, close the locking clip, and position it onto the beam, metal joist, ceiling channel, conveyor frame, or other steel surface. Magnetic clamps are simple to secure and can attach to surfaces contaminated with oil or debris. Ultra-strong neodymium magnets are ideal as a permanent mount or for temporary applications. Reuse and reposition them for ultimate flexibility without needing to replace or repurchase parts.

No drilling or extra hardware required “ just position on steel surface. Magnetic mounts are reliable even in debris. dirt and oil. Use for permanent mounting or as a temporary installation tool. Reuse and reposition capabilities allow for a flexible mounting solution. Easily remove without leaving residue behind.

The product is made from Neodymium alloy 45M (NDFEB45M);Polyacetal (POM);Steel (ST) and is engineered for an operating temperature range of -40F to +176F (-40C to +80C) and is supplied in Black (BK) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor Use Only.

Diameter specifications include Bundle Diameter Max. (Imperial) 0.5"; Bundle Diameter Max. (Metric) 12.7mm; Diameter D (Imperial) 0.91"; Diameter D (Metric) 23.2mm; Nominal Bundle Diameter ND (imperial) 0.50"; Nominal Bundle Diameter ND (metric) 12.7mm.

Fixation Method Magnet Height H (Imperial) 0.85" Height H (Metric) 21.5mm Magnetic Pull Strength (kgf) 6.73 Magnetic Pull Strength (lb/ft) 15 lbf-ft Magnetic Pull Strength (N) 66 N Rotation () 360 Width W (Imperial) 0.60" Width W (Metric) 15.2mm.
