151-03656

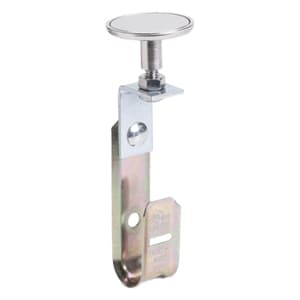

Magnetic J-hooks route cables by securing to steel surfaces without the need for a mounting hole. Part number 151-03656 provides this functionality. Simply hang cables within the J-hook and position the magnet onto the beam, metal joist, ceiling channel, conveyor frame, or other steel surface. Magnetic J-hooks are ideal for supporting communication and data cables. The mounts are simple to secure and can attach to surfaces contaminated with oil or debris. Ultra-strong neodymium magnets are ideal as a permanent mount or for temporary applications. Reuse and reposition them for ultimate flexibility without needing to replace or repurchase parts.

No drilling or extra hardware required “ just position on steel surface. Magnetic mounts are reliable even in debris. dirt and oil. Use for permanent mounting or as a temporary installation tool. Reuse and reposition capabilities allow for a flexible mounting solution. Easily remove without leaving residue behind.

The product is made from Neodymium alloy 45M (NDFEB45M);Steel (ST) and is engineered for an operating temperature range of -40F to +176F (-40C to +80C) and is supplied in Metal (ML) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor Use Only.

Diameter specifications include Diameter D (Imperial) 1.57"; Diameter D (Metric) 40.0mm; Nominal Bundle Diameter ND (imperial) 0.56"; Nominal Bundle Diameter ND (metric) 14.2mm.

Depth D (Imperial) 0.85" Depth D (Metric) 21.6mm Fixation Method Magnet Height H (Imperial) 4.95" Height H (Metric) 125.8mm Magnetic Pull Strength (kgf) 40.79 Magnetic Pull Strength (lb/ft) 90 lbf-ft Magnetic Pull Strength (N) 400 N Rotation () 360 Width W (Imperial) 0.88" Width W (Metric) 22.5mm.

Order today for reliable performance and quality.
