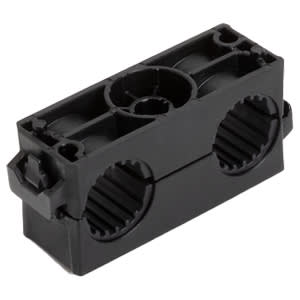

This clamp system can protect HV cable wires in double cable routing applications and is secured using hardware. Part number 151-03789 provides this functionality. Clamp halves are sold individually; order two of these parts for every one clamp desired.

TPE layer protects cables and prevents rotation and axial slide. for a positive hold without crushing bundles. Clamps are stackable to minimize space. Anti-rotation feature prevents clamps from rotating while bolting down. Releasable latch allows access to routings for serviceability.

The product is made from Polyamide 6.6 glass fiber reinforced (PA66GF15%);Thermoplastic Elastomer (TPE) and is engineered for an operating temperature range of -40F to +257F (-40C to +125C) and is supplied in Black (BK) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor and Outdoor Use.

Diameter specifications include Bundle Diameter 1st Hole Max. (Imperial) 0.69"; Bundle Diameter 1st Hole Max. (Metric) 17.5mm; Bundle Diameter 2nd Hole Max. (Imperial) 0.69"; Bundle Diameter 2nd Hole Max. (Metric) 17.5mm; Bundle Diameter Max. (Imperial) 0.69"; Bundle Diameter Max. (Metric) 17.5mm; Bundle Diameter Min. (Imperial) 0.65"; Bundle Diameter Min. (Metric) 16.5mm; Mounting Hole Diameter D (Imperial) 0.31 x 0.05"; Mounting Hole Diameter D (Metric) M8 x 1.25 Threaded; Stud Diameter (Metric) M8.

It is available in a length of 3.24", 82.3mm, 1.73", 44.0mm.

Height H (Imperial) 1.42" Height H (Metric) 36.0mm Height H2 (Imperial) 0.71" Height H2 (Metric) 18.0mm Mounting Hole Centers (Imperial) 1.73" Mounting Hole Centers (Metric) 44.0mm Weight per 1 Content Unit without Packaging 0.01856 kg Width W (Imperial) 1.02" Width W (Metric) 26.0mm.
