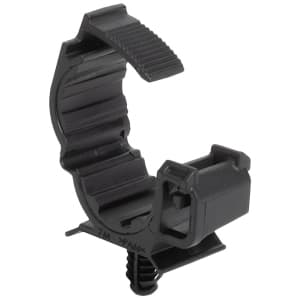

Designed for fluid routing and high-voltage cable management, the soft-grip Ratchet O-Clamp comes with a TPE liner to protect routings and keep them in position. Part number 151-04075 provides this functionality. An integrated fir tree provides a secure grip into round mounting holes with no additional hardware. Developed for tight spaces, this clamp maintains a low profile while providing an adjustable grip for a range of bundle sizes.

Soft TPE over-mold prevents axial slide/rotation and protects sensitive HV cables. Long 6.5mm fir tree allows clip to be installed in panels up to 6mm thick and hole sizes from 6.1-7.0mm. Fine-pitch ratchet provides controlled grip for a range of pipe sizes with one part. Fully enclosed clamp prevents slip. crush and fallout under vacuum. Release feature opens by inserting a screwdriver. allowing the clamp to be reused or serviced without removing it from mounting surface. .

The product is made from Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV);Thermoplastic Elastomer (TPE) and is engineered for an operating temperature range of -40F to +221F (-40C to +105C) and is supplied in Black (BK) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor and Outdoor Use.

Diameter specifications include Bundle Diameter Max. (Imperial) 0.79"; Bundle Diameter Max. (Metric) 20.0mm; Bundle Diameter Min. (Imperial) 0.61"; Bundle Diameter Min. (Metric) 15.5mm; Mounting Hole Diameter D (Imperial) 0.24 - 0.28"; Mounting Hole Diameter D (Metric) 6.1 - 7.0mm.

It is available in a length of 1.46", 37.0mm.

Tensile strength is rated at 100 lbs, 445 N.

This product is suitable for applications in Automotive Industry;Defence Industry;Industrial Automation;Marine;Mining Industry;Energy Provider;OEM Industry;Offshore Industry;Panel Building;Rail Transportation Sector;Shipbuilding;Truck Heavy Equipment;Wind Energy Sector;Chemical Industry;Electrical Installation;Electronics Industry;Food Industry.

Fixation Method Fir Tree Height H (Imperial) 1.81" Height H (Metric) 46.0mm Mounting Hole Shape Circular Panel Thickness (Imperial) 0.02 - 0.24" Panel Thickness (Metric) 0.6 - 6.0mm Panel Thickness Max. (Imperial) 0.24" Panel Thickness Max. (Metric) 6.0mm Panel Thickness Min. (Imperial) 0.02" Panel Thickness Min. (Metric) 0.60mm Weight per 1 Content Unit without Packaging 0.008 kg Width W (Imperial) 0.81" Width W (Metric) 20.5mm.
