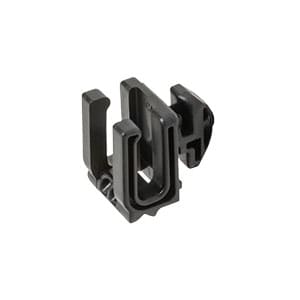

151-04159

The cradle mount with frame attachment can be twisted into industrial frames with a 0.7 x 0.31" frame mount and is ideal for routing wires in industrial applications where rework and adjustments are common. Part number 151-04159 provides this functionality. Mount features a 0.24" cradle opening for cable retention. The cradle arms can temporarily hold wires for simple adjustments and cable additions and protect against abrasion and cable damage. To permanently mount the bundle, the EZ Feed cable tie slot eliminates common obstructions for faster completion. During rework, the CutZone prevents wire damage when cutting off cable ties.

Temporarily holds wires along routing path until ready to make permanent. Built-in CutZone safety feature prevents damage to wires and cables. Unique EZ Feed slot maintains clear space to insert cable ties. Frame mount allows for simple quarter-turn mounting into 80/20. 40- or 15-Series aluminum frames.

The product is made from Polyamide 6.6, super tough, heat stabilized (PA66STHS) and is engineered for an operating temperature range of -40F to +221F (-40C to +105C) and is supplied in Black (BK) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor and Outdoor Use.

It is available in a length of 1.0", 25.4mm, 0.75", 19.0mm.

Cable Tie Thickness Max. (imperial) 0.13" Cable Tie Thickness max. (metric) 3.25mm Cable Tie Width Max. (Imperial) 0.36" Fixation Method 80/20 Frame For Cable Ties T18-T120 Height H (Imperial) 0.55" Height H (Metric) 14.0mm Height H2 (Imperial) 0.24" Height H2 (Metric) 6.0mm Maximum Recommended Load (metric) 0.00 kgf Panel Thickness (Imperial) 0.31" Panel Thickness (Metric) 8.0mm Width W (Imperial) 0.76" Width W (Metric) 19.3mm Width W2 (Imperial) 0.32" Width W2 (Metric) 8.0mm.
