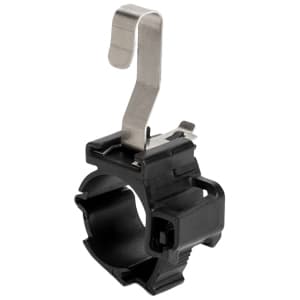

The Ratchet O-Clamp for Nextracker attaches easily to Nextracker torque tubes. Part number 151-04385 provides this functionality. It offers one-handed, toolless simplicity and size versatility for managing wires and cables on solar modules. The robust design and solar-optimized materials make it ideal for heavy duty, outdoor applications. The one-piece adjustable clamp can be closed by hand to the desired diameter, replacing multiple sizes for single-diameter fasteners.

Fine-pitch ratchet provides controlled grip for a range of bundle sizes with one part. Fully enclosed clamp prevents crushing and fallout. Release latch with simple twist of screwdriver. Nextracker-specific stainless steel mounting hanger designed for severe weather and single-axis tracker movement.

The product is made from Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV);Stainless Steel (SS) and is engineered for an operating temperature range of -40F to +221F (-40C to +105C) and is supplied in Black (BK) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor and Outdoor Use.

Diameter specifications include Bundle Diameter Max. (Imperial) 0.89"; Bundle Diameter Max. (Metric) 22.5mm; Bundle Diameter Min. (Imperial) 0.73"; Bundle Diameter Min. (Metric) 18.5mm.

It is available in a length of 2.29", 58.1mm, 1.46", 37.0mm.

Tensile strength is rated at 100 lbs, 445 N.

This product is suitable for applications in Automotive Industry;Defence Industry;Industrial Automation;Marine;Mining Industry;Energy Provider;OEM Industry;Offshore Industry;Panel Building;Rail Transportation Sector;Shipbuilding;Truck Heavy Equipment;Wind Energy Sector;Chemical Industry;Electrical Installation;Electronics Industry;Food Industry.

Fixation Method Mounting Hanger Height H (Imperial) 3.3" Height H (Metric) 83.7mm Height H2 (Imperial) 1.38" Height H2 (Metric) 35.1mm Width W (Imperial) 1.14" Width W (Metric) 28.9mm.

Order today for reliable performance and quality.
