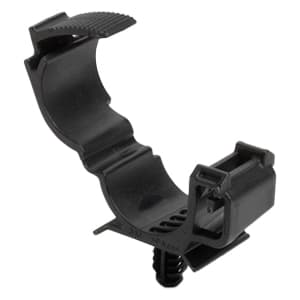

Designed for adjustable cable and tube management, the Ratchet O-Clamp fits in tight spaces with its low profile while providing an adjustable closure for a range of bundle sizes. Part number 151-04403 provides this functionality. An integrated fir tree provides a secure grip into round mounting holes with no additional hardware.

Long 6.5mm fir tree allows clip to be installed in panels up to 6mm thick and for hole sizes from 6.1-7.0mm. Fine-pitch ratchet provides controlled grip for a range of bundle sizes with one part. Fully enclosed clamp prevents unintended disengagement. Release feature opens by inserting a screwdriver. allowing the clamp to be reused or serviced without removing it from mounting surface.

The product is made from Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) and is engineered for an operating temperature range of -40F to +221F (-40C to +105C) and is supplied in Black (BK) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor and Outdoor Use.

Diameter specifications include Bundle Diameter Max. (Imperial) 0.89"; Bundle Diameter Max. (Metric) 22.5mm; Bundle Diameter Min. (Imperial) 0.73"; Bundle Diameter Min. (Metric) 18.5mm; Mounting Hole Diameter D (Imperial) 0.24 - 0.28"; Mounting Hole Diameter D (Metric) 6.1 - 7.0mm.

It is available in a length of 1.46", 37.0mm.

Tensile strength is rated at 100 lbs, 445 N.

This product is suitable for applications in Automotive Industry;Defence Industry;Industrial Automation;Marine;Mining Industry;Energy Provider;OEM Industry;Offshore Industry;Panel Building;Rail Transportation Sector;Shipbuilding;Truck Heavy Equipment;Wind Energy Sector;Chemical Industry;Electrical Installation;Electronics Industry;Food Industry.

Fixation Method Fir Tree Height H (Imperial) 1.81" Height H (Metric) 46.0mm Mounting Hole Shape Circular Panel Thickness (Imperial) 0.02 - 0.24" Panel Thickness (Metric) 0.6 - 6.0mm Panel Thickness Max. (Imperial) 0.24" Panel Thickness Max. (Metric) 6.0mm Panel Thickness Min. (Imperial) 0.02" Panel Thickness Min. (Metric) 0.60mm Width W (Imperial) 0.81" Width W (Metric) 20.5mm.

Order today for reliable performance and quality.
