151-06500

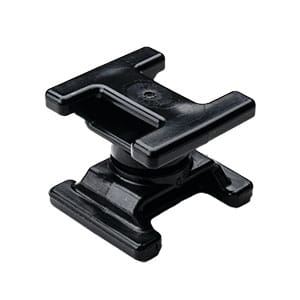

These saddle spacers are installed between two bundles (such as wires, cables, hoses, tubing, conduit, etc.) to separate and prevent chafing and wear. Part number 151-06500 provides this functionality. The mounts can be easily rotated by hand, allowing the bundles to be crossed and rotated at any angle. Cable ties, which secure the bundles, are used with the mounts. The dual swivel saddle spacers accommodate cable ties up to 1/2" wide.

H-profile of the saddles allows for broad surface contact with the bundle. which minimizes pinching and crushing of the bundle. Swivels in 360-degree motion to accommodate any area. Accommodates T50“T250 ties to handle both light-duty and heavy-duty applications.

The product is made from Polyamide 6.6 heat stabilized (PA66HS);Polyacetal (POM) and is engineered for an operating temperature range of -40F to +221F (-40C to +105C);-31F to +185F (-35C to +85C) and is supplied in Black (BK) and should be stored in Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73F (22.8C), 50% RH with intended use for For Indoor and Outdoor Use.

Diameter specifications include Bundle Diameter Max. (Imperial) 2.99"; Bundle Diameter Max. (Metric) 76.0mm; Bundle Diameter Min. (Imperial) 0.24"; Bundle Diameter Min. (Metric) 6.0mm.

It is available in a length of 0.91", 23.6mm.

Tensile strength is rated at 0.00 kgf.

This product is suitable for applications in Wind Energy Sector;Rail Transportation Sector;Automotive Industry;Electronics Industry;Shipbuilding;Defence Industry.

Cable Tie Width Max. (Imperial) 0.5" Extraction Force Min. (Imperial) 100.0 lbs Extraction Force Min. (Metric) 445 N For Cable Ties T50 - T250 Height H (Imperial) 0.7" Height H (Metric) 18.0mm Weight per 1 Content Unit without Packaging 0.00361 kg Width W (Imperial) 0.8" Width W (Metric) 20.3mm.

Order today for reliable performance and quality.
